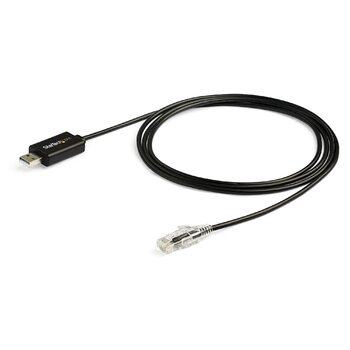

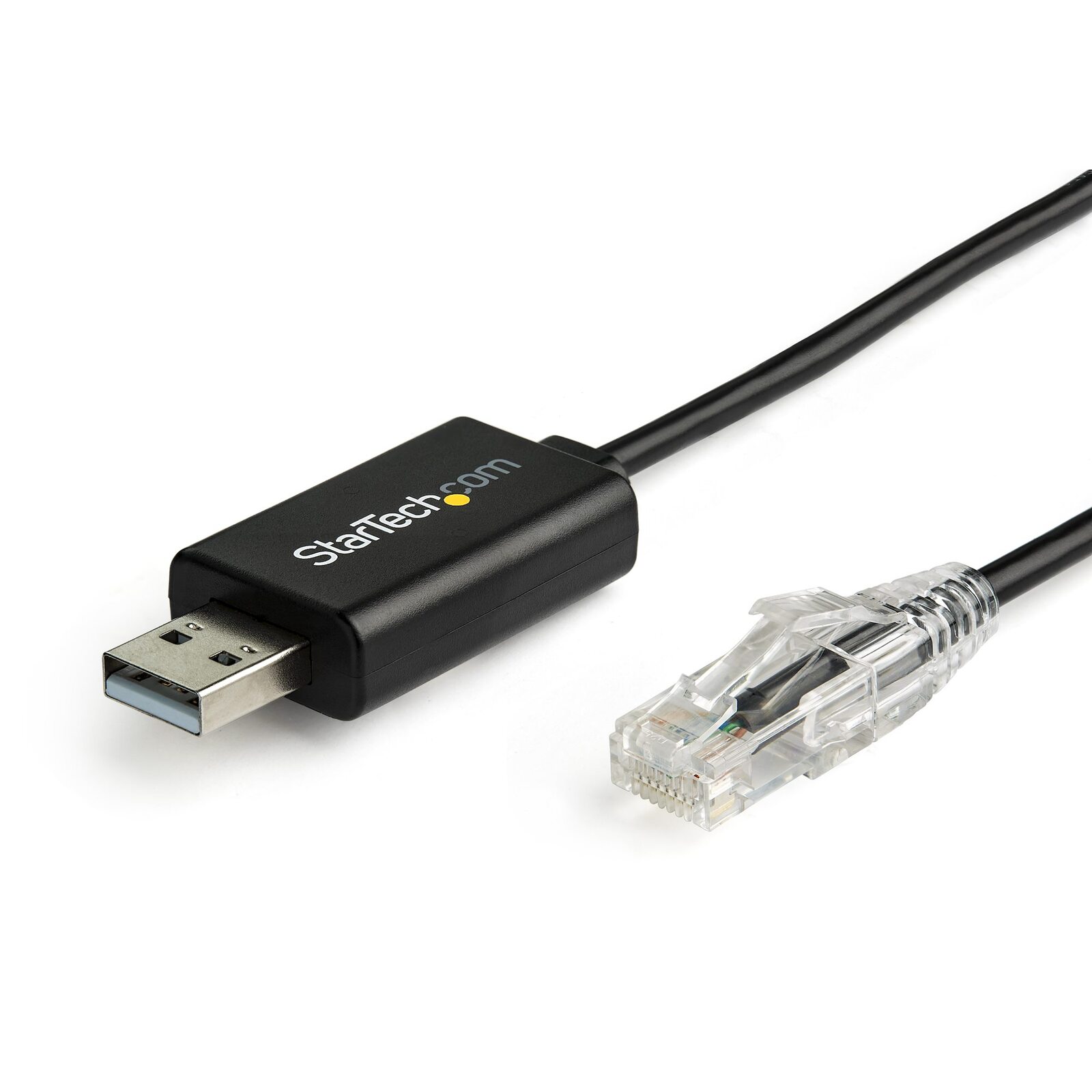

Star Tech 6 ft (1.8 m) Cisco USB Console Cable - USB to RJ45

This item comes with a 2 Years warranty

Star Tech 6 ft (1.8 m) Cisco USB Console Cable - USB to RJ45This Cisco USB console cable offers a reliable connection from your desktop or laptop to networking equipment that features a console port. Compatible USB Connection Create a direct connection from the USB 2.0 port on your computer or laptop to the RJ45 console port on your router, server, firewall or switch. This Cisco rollover cable is compatible with most routers, including Cisco, Juniper, Ubiquiti or TP-Link, providing an easy connection for programming your networking equipment from your Windows, Mac or Linux computer. High-Quality Design Expertly designed and constructed with only the highest quality materials, this USB to Ethernet cable provides maximum dependability, supporting data transfer rates up to 460Kbps. It also provides a reliable and hassle-free connection without the need for additional adapters or external power.

Packaging Information
Shipping (Package) Weight  : 98 g [3.5 oz]

Performance
Data Bits  : 5, 6, 7, 8
FIFO  : 512 Bytes
Max Baud Rate  : 460.8 Kbps
Parity  : Odd, Even, Mark, Space, or None
Stop Bits  : 1, 1.5, 2
Supported Protocols  : RS-232

Physical Characteristics
Cable Length  : 1.8 m [6 ft]
Color  : Black
Material  : Plastic
Product Height  : 1.1 cm [0.4 in]
Product Length  : 1.8 m [6 ft]
Product Width  : 23.4 mm [0.9 in]
Weight of Product  : 40 g [1.4 oz]
Wire Gauge  : 28 AWG

Power
Power Source  : Bus Powered

Prominence
Description CDW 75 - 1st Line  : StarTech.com 6' / 1.8 m Cisco USB Console Cable - USB to RJ45 - 460Kbps

Software
OS Compatibility  : Windows® 7, 8, 8.1, 10
Windows Server® 2008 R2, 2012, 2012 R2, 2016
macOS 10.6 to 10.15, 11.0
Linux 2.4.31 to 4.11.x LTS version only

Special Notes / Requirements
System and Cable Requirements  : One available USB 1.1 (or above) port

What's in the Box
Included in Package  : Quick-Start Guide
USB to RJ45 Rollover Cable

Packaging Information
Package Width  : 14.2 cm [5.6 in]
Package Length  : 17 cm [6.7 in]
Package Height  : 30 mm [1.2 in]

Hardware
Ports  : 1
Port Style  : Cable Adapters
Industry Standards  : USB 1.1/2.0, RS-232
Chipset ID  : Prolific PL2303HXD
Cable Jacket Material  : PVC - Polyvinyl Chloride
Bus Type  : USB 2.0

Environmental
Storage Temperature  : -20°C to 80°C (-4°F to 176°F)
Operating Temperature  : 0°C to 70°C (32°F to 158°F)
Humidity  : 20~80% RH

Connector(s)
Connector B  : RJ-45 Male
Connector A  : USB Type-A (4 pin) USB 2.0 Male


Connector Plating  : Nickel
