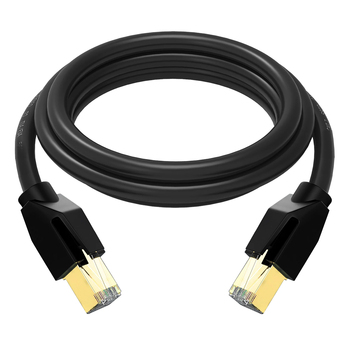

Cruxtec RJ45 LAN CAT8 40GbE 20m Triple Shielding Ethernet Cable - Black

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Cruxtec RJ45 LAN CAT8 40GbE 20m Triple Shielding Ethernet Cable - Black

Specifications
Compliant Standard: TIA-568-C.2-2009, TIA-568.2-D-2018, ANSI/TIA-568-C.2-1
Suitable for 10BASE-T, 100BASE-TX, 1000BASE-T/1000BASE-TX, 10GBaseT, PoE, PoE+

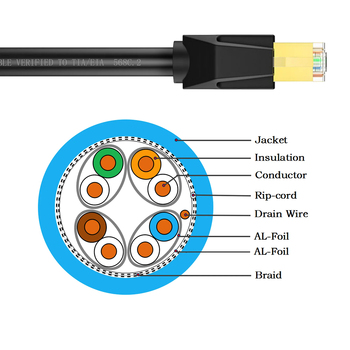

Conductor Type: BC 4*2*26AWG (7*0.16mm) OFC(Oxygen Free Copper) Shielding Types: SF/FTP (S/STP) Triple Shielding (individual foil shielding twisted pair, overall Aluminum Magnesium braid shielding and Aluminum foil shielding)

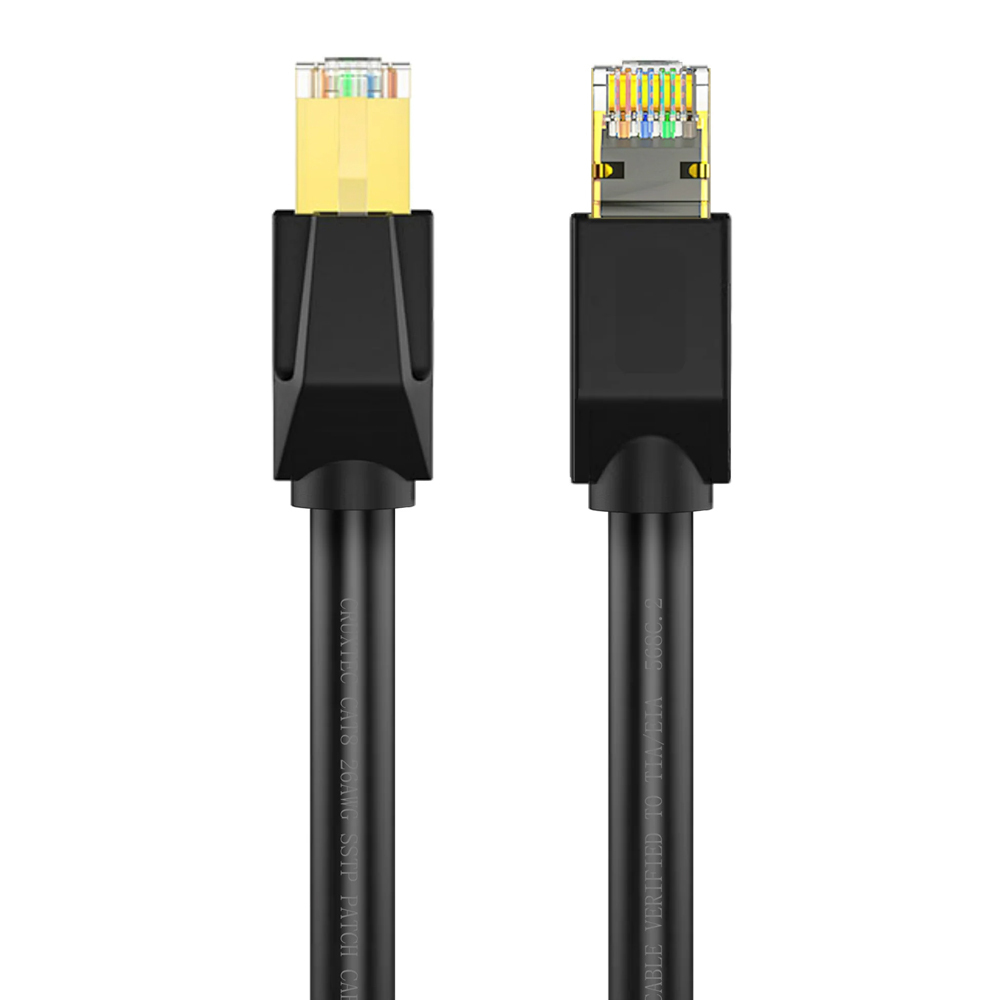

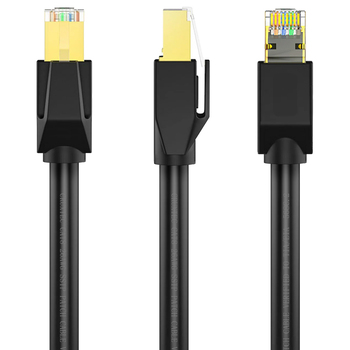

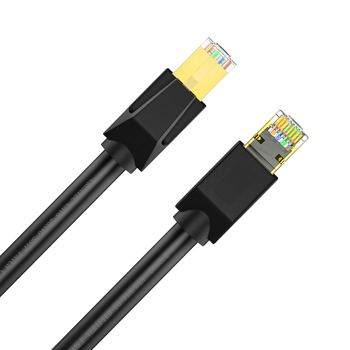

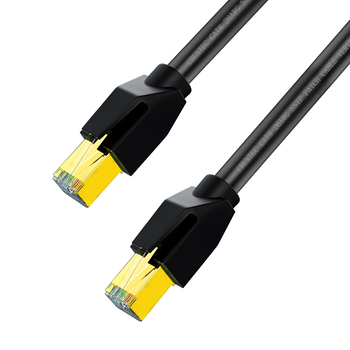

Connectors: Gold-plated RJ45, Gold-plated copper shell
Transfer Rate: up to 40Gbps
Bandwidth: up to 2000MHz
Sheath: Eco flexible PVC Insulation: HDPE
Outside Diameter: 7±0.3mm

Features
Gold-plated RJ45 copper shell connectors, protect the cable from external Electro-Magnetic Interference (EMI)
99.99% Oxygen Free Copper provides steady transmission
Supports up to 40Gbps transmission speed and 2000MHz bandwidth
SF/FTP (S/STP) Triple shielding provides the maximum protection from RFI/EMI
Fluke Test Passed

Colour
Black

Cable Length
20m

Includes
1x Cable

(RS8-200-BK)

Standard Consumer Warranty

Cruxtec RJ45 LAN CAT8 40GbE 20m Triple Shielding Ethernet Cable - BlackSpecificationsCompliant Standard: TIA-568-C.2-2009, TIA-568.2-D-2018, ANSI/TIA-568-C.2-1Suitable for 10BASE-T, 100BASE-TX, 1000BASE-T/1000BASE-TX, 10GBaseT, PoE, PoE+Conductor Type: BC 4*2*26AWG (7*0.16mm) OFC(Oxygen Free Copper) Shielding Types: SF/FTP (S/STP) Triple Shielding (individual foil shielding twisted pair, overall Aluminum Magnesium braid shielding and Aluminum foil shielding)Connectors: Gold-plated RJ45, Gold-plated copper shellTransfer Rate: up to 40GbpsBandwidth: up to 2000MHzSheath: Eco flexible PVC Insulation: HDPEOutside Diameter: 7±0.3mmFeaturesGold-plated RJ45 copper shell connectors, protect the cable from external Electro-Magnetic Interference (EMI) 99.99% Oxygen Free Copper provides steady transmissionSupports up to 40Gbps transmission speed and 2000MHz bandwidthSF/FTP (S/STP) Triple shielding provides the maximum protection from RFI/EMIFluke Test PassedColourBlackCable Length20mIncludes1x Cable
Model # RS8-200-BK
Barcode # 0712179496514
Brand CRUXTEC
Shipping Weight 0.6900kg
Shipping Width 0.300m
Shipping Height 0.035m
Shipping Length 0.240m
Shipping Cubic 0.002520000m3
Type Ethernet Cable
