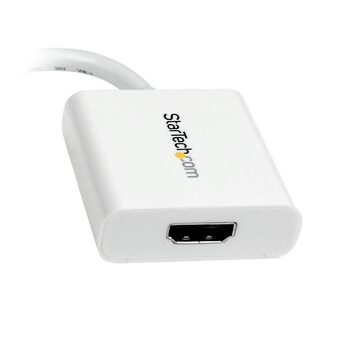

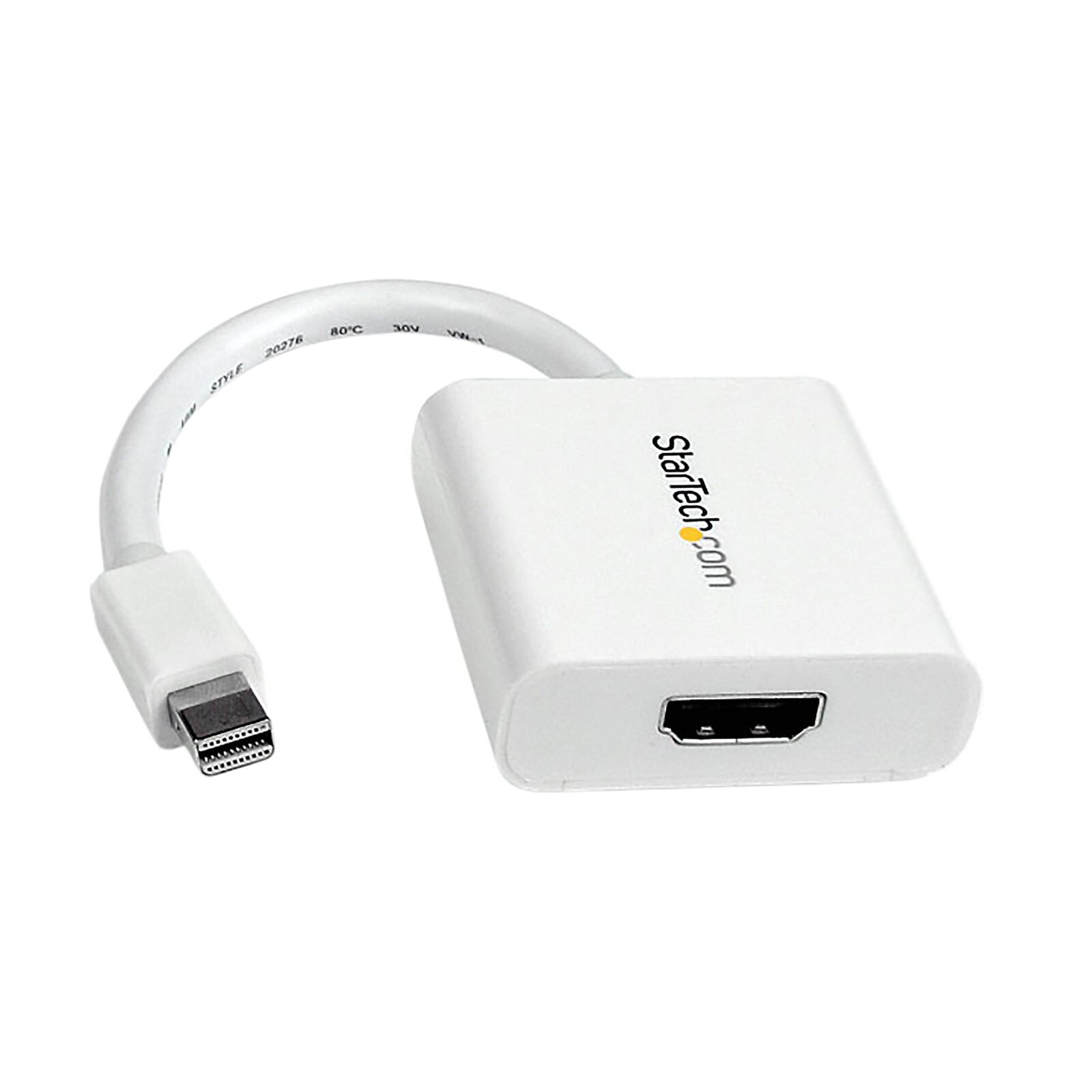

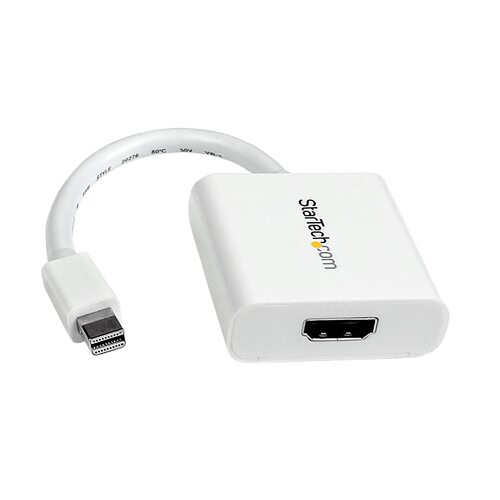

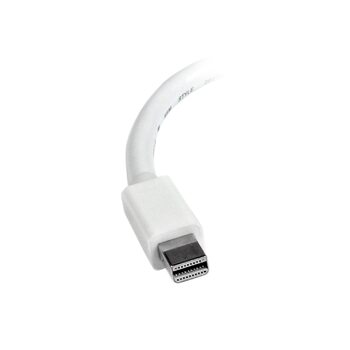

Star Tech Mini DisplayPort® to HDMI® Video Adapter Converter - White
The MDP2HDW passive Mini DisplayPort® to HDMI® Video Adapter/Converter (White) offers a convenient HDMI/Mini-DisplayPort link, which enables you to connect an HDMI computer monitor or television to a device with a Mini-DisplayPort output (such as any Microsoft® Surface™ Pro with mDP), while saving the expense of upgrading the monitor for compatibility.
The adapter supports high resolution output up to 1920x1200, offering a high quality solution for mirroring or extending a computer desktop onto a second display.
This versatile Mini DisplayPort to HDMI adapter requires a multimode DisplayPort port (DisplayPort ++) connection to function, and is compatible with Intel® Thunderbolt™ output when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.
(MDP2HDW)
This item comes with a 3 Years warranty
Performance
Audio Specifications: HDMI - 7.1 Channel Audio
Maximum Cable Distance To Display: 15.2 m [49.9 ft]
Maximum Digital Resolutions: 1920x1200 / 1080p
MTBF: MDP2HDW hours
Physical Characteristics
Cable Length: 120 mm [4.7 in]
Color: White
Product Height: 1.5 cm [0.6 in]
Product Length: 17 cm [6.7 in]
Product Width: 40 mm [1.6 in]
Weight of Product: 24 g [0.8 oz]
Prominence
Description CDW 75 - 1st Line: StarTech.com Mini DisplayPort to HDMI Adapter - mDP to HDMI Video Converter
Special Notes / Requirements
System and Cable Requirements: DP++ port (DisplayPort ++) required on video card or video source (DVI and HDMI pass-through must be supported)
What's in the Box
Included in Package: Mini-DisplayPort® to HDMI® converter
Packaging Information
Shipping (Package) Weight: 50 g [1.8 oz]
Package Width: 16 cm [6.3 in]
Package Length: 24 cm [9.4 in]
Package Height: 20 mm [0.8 in]
Hardware
Industry Standards: DisplayPort 1.1a
HDMI 1.3a
Chipset ID: NXP - PTN3361
AV Output: HDMI - 1.4
AV Input: Mini DisplayPort - 1.2
Audio: Yes
Active or Passive Adapter: Passive
Environmental
Storage Temperature: -10°C to 70°C (14°F to 158°F)
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Humidity: 40~85% RH
Connector(s)
Connector B: HDMI (19 pin) Female
Connector A: Mini-DisplayPort (20 pin) Male
Model # | MDP2HDW |
Barcode # | 065030845960 |
Brand | STAR TECH |
Shipping Weight | 0.0500kg |
Shipping Width | 0.240m |
Shipping Height | 0.020m |
Shipping Length | 0.160m |
Shipping Cubic | 0.000768000m3 |
Type | AV Adapter/Converter |
