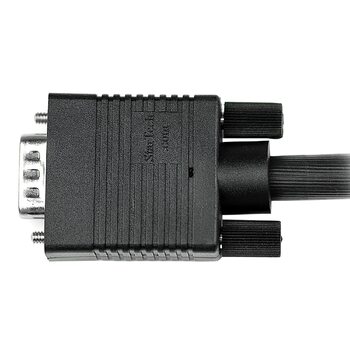

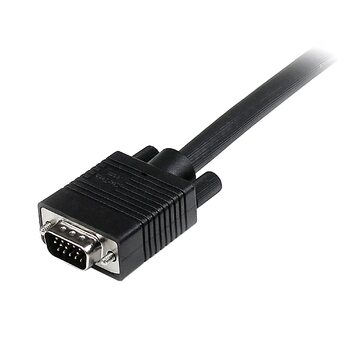

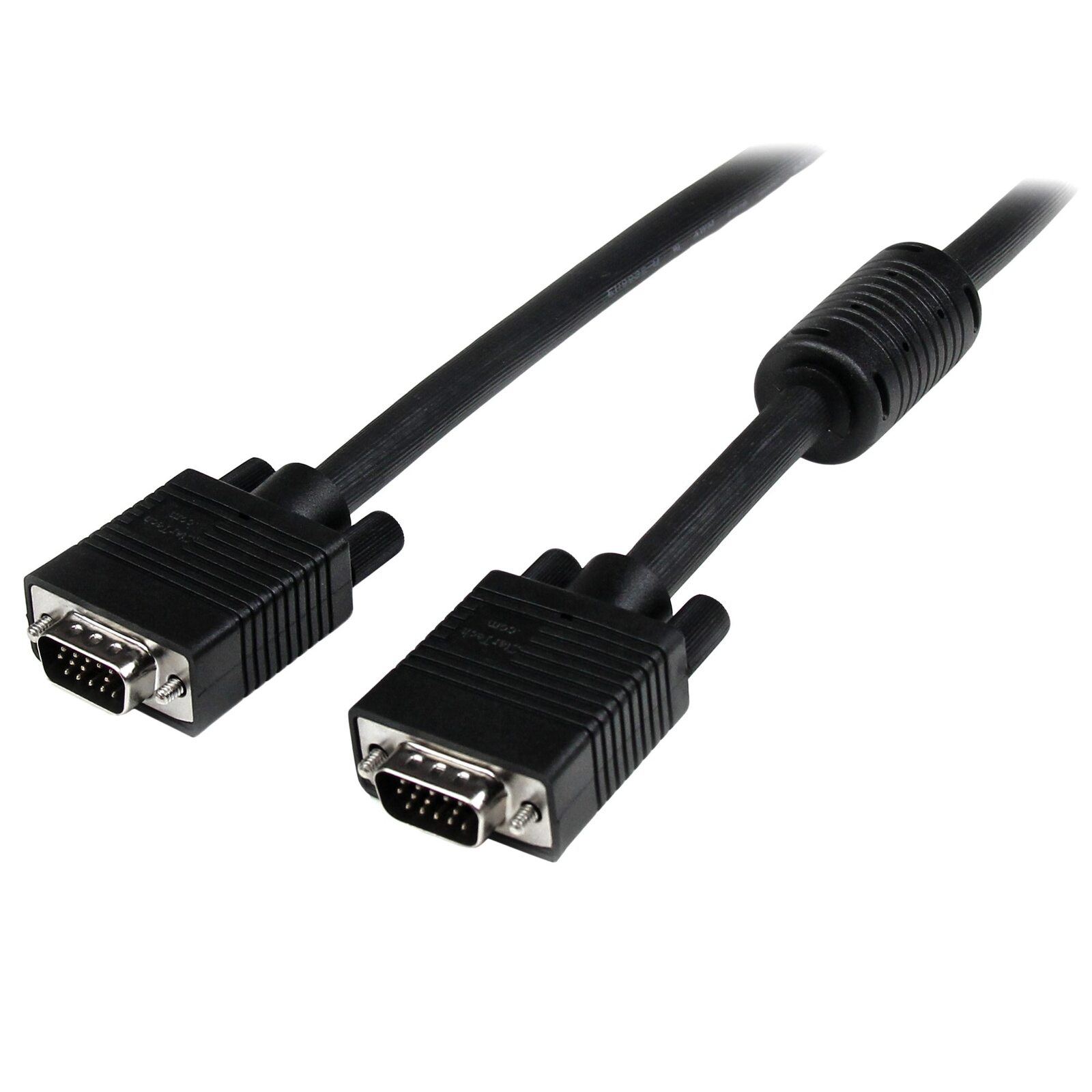

Star Tech 5m VGA Video Cable - HD15 to HD15 Male to Male
or 4 payments of $7.25 with Learn more
Reviews
Be The First To Review This Product!
Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.
Star Tech 5m VGA Video Cable - HD15 to HD15 M/M 5 Meters
The MXTMMHQ5M High Resolution VGA Cable (5-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
(MXTMMHQ5M)
This item comes with 5 years warranty
Packaging Information
Shipping (Package) Weight : 0.6 kg [1.2 lb]
Physical Characteristics
Cable Length : 5 m [16.4 ft]
Color : Black
Product Length : 5 m [16.4 ft]
Weight of Product : 556 g [19.6 oz]
Wire Gauge : 28 AWG
What's in the Box
Included in Package : 5m Coax High Resolution Monitor VGA Cable - HD15 M/M
Packaging Information
Package Width : 20 cm [7.9 in]
Package Quantity : 1
Package Length : 22 cm [8.7 in]
Package Height : 87 mm [3.4 in]
Hardware
Number of Ferrites : 1
Number of Conductors : 14
Fire Rating : CMG Rated (General Purpose)
Connector Plating : Nickel
Cable Shield Material : Aluminum-Mylar Foil with Braid
Cable Jacket Material : PVC - Polyvinyl Chloride
Environmental
Storage Temperature : -20 to 80 °C
Operating Temperature : 0 to 60 °C
Humidity : 0 - 80 %RH
Connector(s)
Connector B : VGA (15 pin, High Density D-Sub) Male
Connector A : VGA (15 pin, High Density D-Sub) Male
Model # | MXTMMHQ5M |
Barcode # | 065030847728 |
Brand | STAR TECH |
Shipping Weight | 0.5600kg |
Shipping Width | 0.220m |
Shipping Height | 0.090m |
Shipping Length | 0.200m |
Shipping Cubic | 0.003828000m3 |
Type | VGA Cable |
