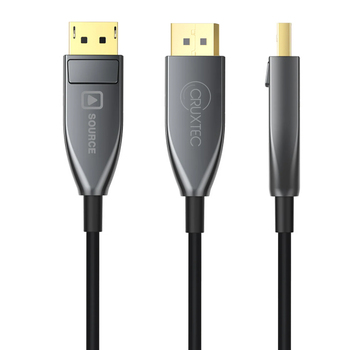

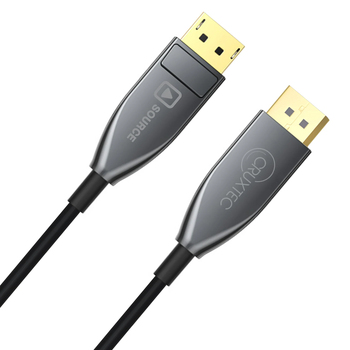

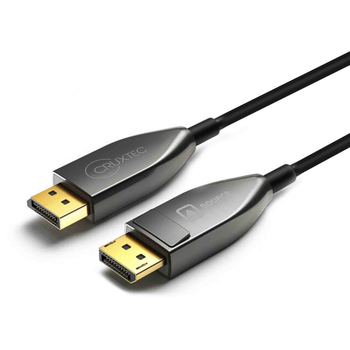

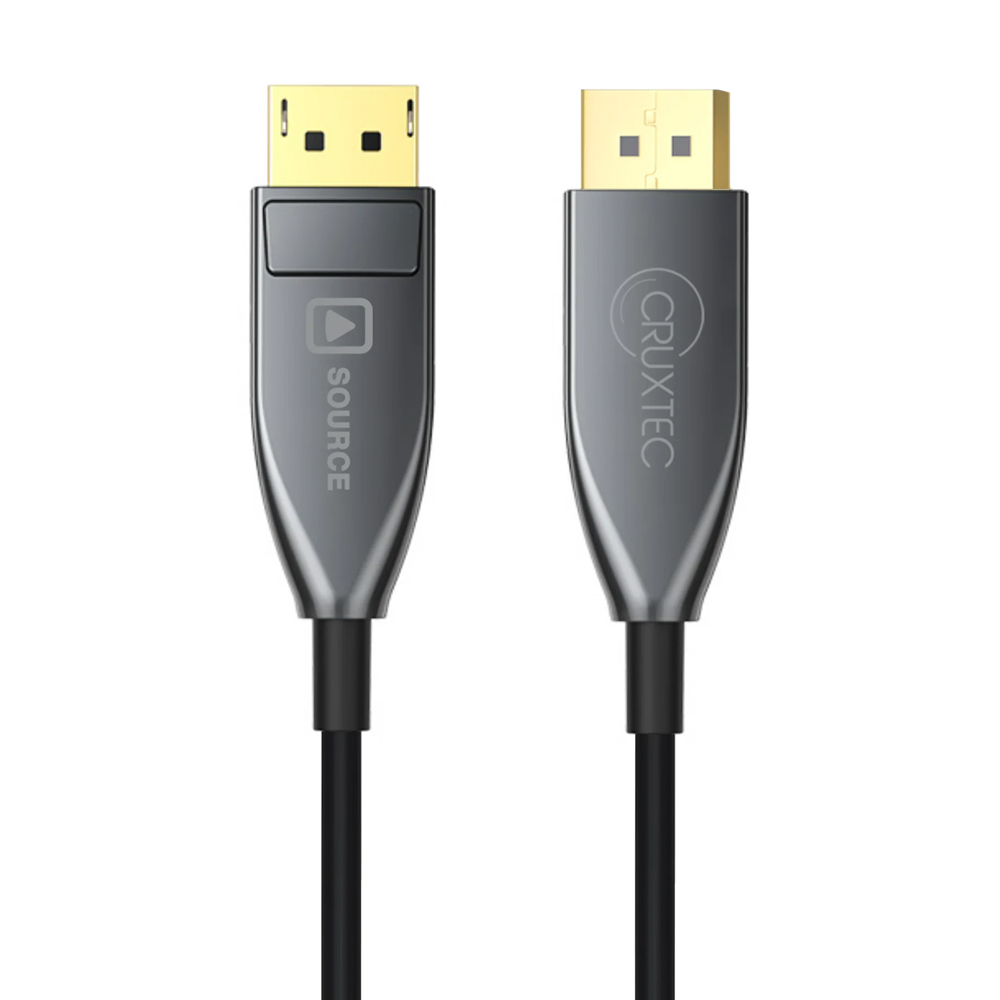

Cruxtec DisplayPort 1.4 8K Active Optical Male 10m 32.4Gbps - Black

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Cruxtec DisplayPort 1.4 8K Active Optical Male 10m 32.4Gbps - Black

Specifications
Pin plating: Gold
Bandwidth: DisplayPort 1.4 32.4Gbps AOC
Maximum Resolution: 8K@60Hz, 4K@144Hz, 2K@165Hz
Connectors: DisplayPort Male to Male ( Modular copper bush reinforced )
Cable length: 10m
Colour: Black
Chipsets: Silicom line (Germany)
VCSEL: II VI (America) Cable Diameter (OD): 4.8mm
Power Consumption: Source (85mW@3.3V), Display (290mW@3.3V)

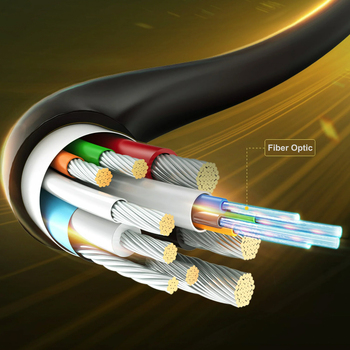

1 Shield Type: Aluminium foil shielding 1 Conductor Type: OM3 multimode 4-core optical fiber
1 Supports HDR, 3D, DSC, VRR

Features
Zinc alloy housing
Gold plated connectors DP 1.4 32.4Gbps, Maximum Resolution: 8K@60Hz, 4K@144Hz, 2K@165Hz
Optical Fiber Transmission Advantage, Strong flexibility ensures long-term crimp storage or wiring does not affect signal transmission
Breakthrough the length limit, non-destructive transmission without interference
Supports HDR, 3D, DSC, VRR
Kevlar is used as the central strength member on fiber optic cables, it provides additional protection for the fibers from the environment
German Silicom line Chipsets and American VCSEL II VI

Colour
Black

Cable Length
10m

Includes
1x Cable

(DS8K-10-BK)

Standard Consumer Warranty

Cruxtec DisplayPort 1.4 8K Active Optical Male 10m 32.4Gbps - BlackSpecificationsPin plating: GoldBandwidth: DisplayPort 1.4 32.4Gbps AOCMaximum Resolution: 8K@60Hz, 4K@144Hz, 2K@165HzConnectors: DisplayPort Male to Male ( Modular copper bush reinforced )Cable length: 10mColour: BlackChipsets: Silicom line (Germany)VCSEL: II VI (America) Cable Diameter (OD): 4.8mmPower Consumption: Source (85mW@3.3V), Display (290mW@3.3V)1 Shield Type: Aluminium foil shielding 1 Conductor Type: OM3 multimode 4-core optical fiber1 Supports HDR, 3D, DSC, VRRFeaturesZinc alloy housingGold plated connectors DP 1.4 32.4Gbps, Maximum Resolution: 8K@60Hz, 4K@144Hz, 2K@165HzOptical Fiber Transmission Advantage, Strong flexibility ensures long-term crimp storage or wiring does not affect signal transmissionBreakthrough the length limit, non-destructive transmission without interferenceSupports HDR, 3D, DSC, VRRKevlar is used as the central strength member on fiber optic cables, it provides additional protection for the fibers from the environmentGerman Silicom line Chipsets and American VCSEL II VIColourBlackCable Length10mIncludes1x Cable
Model # DS8K-10-BK
Barcode # 0712179497115
Brand CRUXTEC
Shipping Weight 0.2800kg
Shipping Width 0.300m
Shipping Height 0.020m
Shipping Length 0.240m
Shipping Cubic 0.001440000m3
Type DisplayPort Cable
