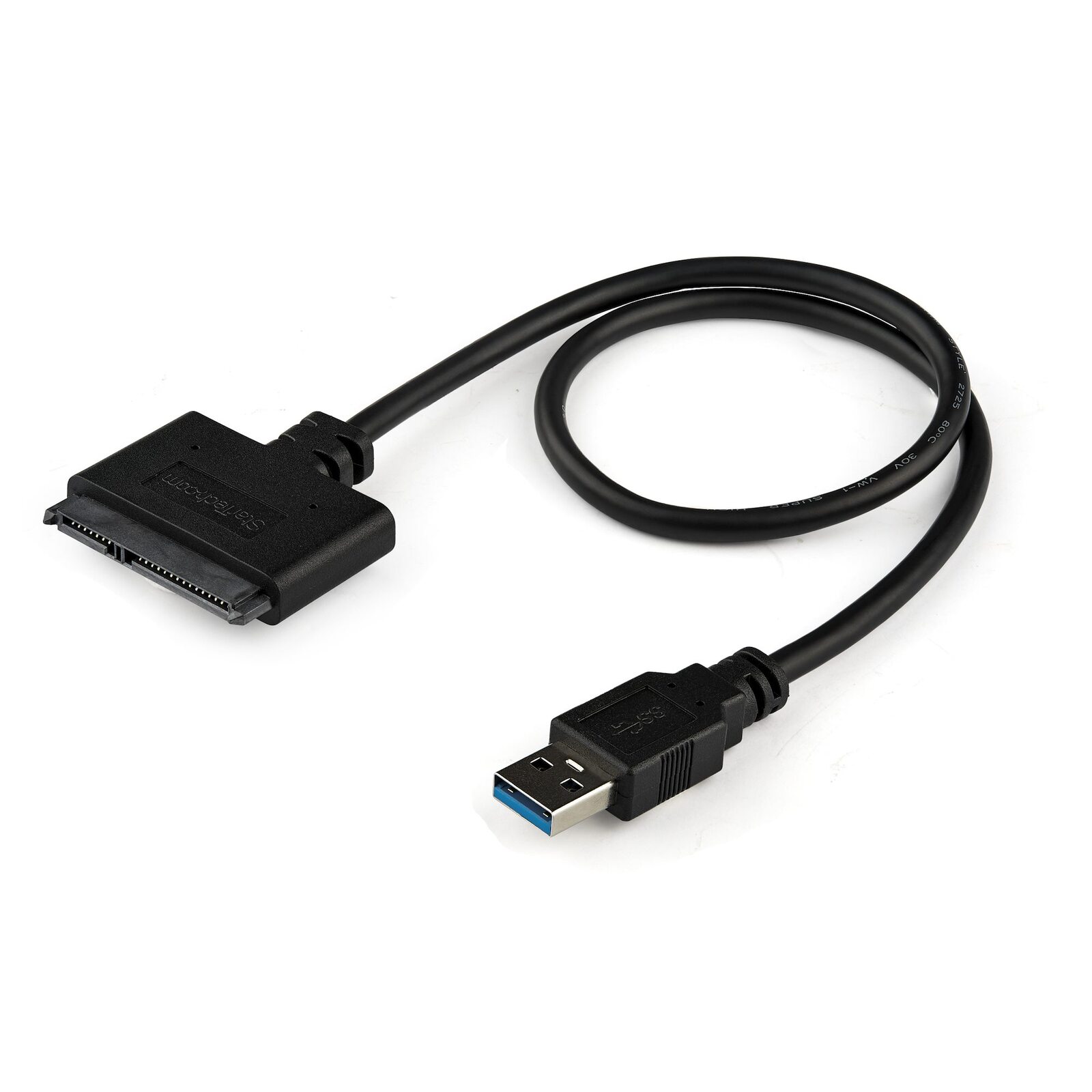

Star Tech USB 3.0 to 2.5” SATA III SSD / HDD Converter Cable w/ UASP

This SATA to USB cable is an external drive adapter that gives you quick and easy access to a SATA drive through the USB-A port on a laptop.

Upgrade the Drive on Your Laptop

This SATA solid-state (SSD) or hard drive (HDD) adapter lets you upgrade to an external 2.5" SATA SSD or HDD.

The cable lets you:

  • Add drive space
  • Perform backups
  • Create disk images
  • Implement data recovery
  • Transfer content between the drive and the laptop

Faster Transfer Speeds with UASP

The cable supports USB 3.0 data transfer speeds of 5Gbps. But, you can experience transfer speeds up to 70% faster than conventional USB 3.0, when connected to a computer that also supports UASP. With UASP you can utilize the full potential of a SATA III SSD or HDD. UASP is supported in Windows® 8, Mac OS X (10.8 or above), and Linux®.

In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

At the same peak in testing, UASP also shows an 80% reduction in required processor resources.

Connect from Anywhere

The SATA to USB cable is a portable solution that tucks away nicely in a laptop bag -- no external power is required. The cable lets you easily swap between drives with no need to install the drive inside an enclosure. It’s plug-and-play and doesn’t require drivers.

(USB3S2SAT3CB)

This item comes with a 2 Years warranty

Star Tech USB 3.0 to 2.5” SATA III SSD / HDD Converter Cable w/ UASPThis SATA to USB cable is an external drive adapter that gives you quick and easy access to a SATA drive through the USB-A port on a laptop.  Upgrade the Drive on Your Laptop  This SATA solid-state (SSD) or hard drive (HDD) adapter lets you upgrade to an external 2.5" SATA SSD or HDD.    The cable lets you:   Add drive space   Perform backups   Create disk images  Implement data recovery  Transfer content between the drive and the laptop  Faster Transfer Speeds with UASP  The cable supports USB 3.0 data transfer speeds of 5Gbps. But, you can experience transfer speeds up to 70% faster than conventional USB 3.0, when connected to a computer that also supports UASP. With UASP you can utilize the full potential of a SATA III SSD or HDD. UASP is supported in Windows® 8, Mac OS X (10.8 or above), and Linux®.   In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.  At the same peak in testing, UASP also shows an 80% reduction in required processor resources.  Connect from Anywhere  The SATA to USB cable is a portable solution that tucks away nicely in a laptop bag -- no external power is required. The cable lets you easily swap between drives with no need to install the drive inside an enclosure. It’s plug-and-play and doesn’t require drivers.

Packaging Information
Package Width  : 22 cm [8.7 in]
Shipping (Package) Weight  : 61 g [2.2 oz]

Performance
4Kn Support  : Yes
General Specifications  : Max power of the attached drive is 900 mA
Hardware Raid Supported  : No
Max Drive Capacity  : Currently tested with up to 2TB 5900 RPM hard drives
MTBF  : 1,609,297 Hours
TRIM Support  : Yes
Type and Rate  : SATA III (6 Gbps)
USB 3.0 - 5 Gbit/s
UASP Support  : Yes

Physical Characteristics
Product Height  : 0.9 cm [0.4 in]
Product Length  : 50 cm [19.7 in]
Product Width  : 49 mm [1.9 in]
Weight of Product  : 42.5 g [1.5 oz]

Power
Power Source  : USB-Powered

Prominence
Description CDW 75 - 1st Line  : StarTech.com USB 3.0 to 2.5" SATA III SSD / HDD Converter Cable w/UASP

Software
OS Compatibility  : OS independent; No software or drivers required

Special Notes / Requirements
Note  : Cable will work only with 2.5" SATA drives
3.5"/5.25" drives are not supported
Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices.

What's in the Box
Included in Package  : Instruction Manual
USB 3.0 to SATA 2.5" HDD Adapter Cable

Packaging Information
Package Length  : 19.8 cm [7.8 in]
Package Height  : 10 mm [0.4 in]

Hardware
Number of Drives  : 1
Interface  : USB 3.0
Fan(s)  : No
Drive Size  : 2.5in
Compatible Drive Types  : SATA
Chipset ID  : ASMedia - ASM1153E
Bus Type  : USB 3.0

Environmental
Storage Temperature  : -10°C to 70°C (14°F to 158°F)
Operating Temperature  : 0°C to 60°C (32°F to 140°F)
Humidity  : 40%-85%RH

Connector(s)

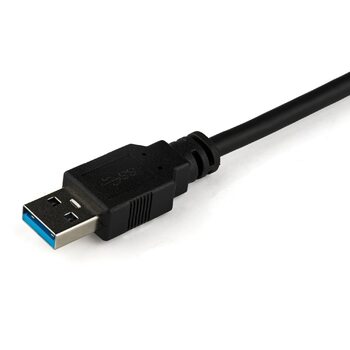

Host Connectors  : USB Type-A (9 pin) USB 3.0 (5 Gbps) Male
Drive Connectors  : SATA Power (15 pin)

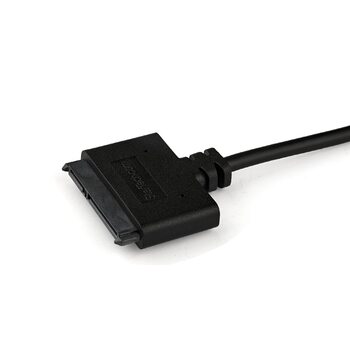

SATA Data & Power Combo (7+15 pin) Receptacle

Model # USB3S2SAT3CB
Barcode # 065030854696
Brand STAR TECH
Shipping Weight 0.0600kg
Shipping Width 0.200m
Shipping Height 0.010m
Shipping Length 0.220m
Shipping Cubic 0.000436000m3
Type Adapter
