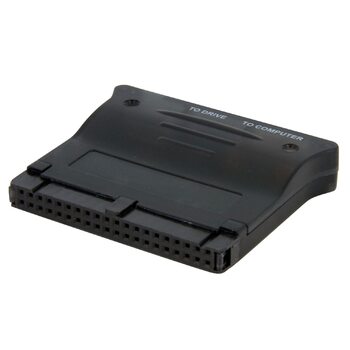

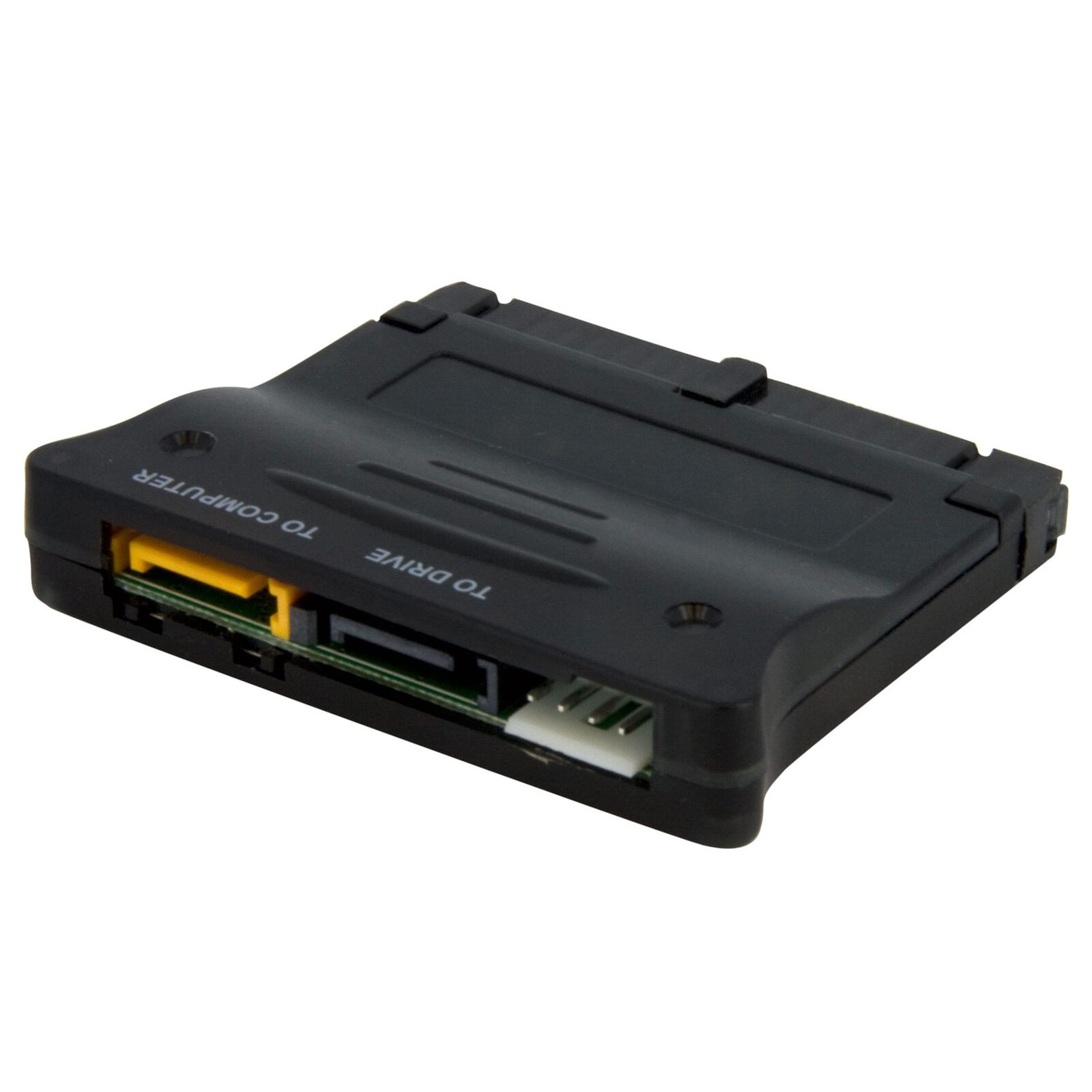

Star Tech Bi-Directional SATA IDE Adapter Converter

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Star Tech Bi-Directional SATA IDE Adapter Converter

The PATA2SATA3 is a bi-directional SATA IDE adapter/converter that lets you connect a Serial ATA drive to a legacy IDE port, or an IDE drive to a SATA motherboard port.

A cost-effective solution for upgrading existing IDE systems to support SATA hard drives or optical drives, the SATA/IDE adapter eliminates the expense of having to purchase a controller card while saving the expansion slot that would be required for card installation.

In addition to SATA hard drive installation, the adapter can be reversed in order to connect older IDE drives to a newer SATA-enabled motherboard, making it easy to retrieve old files from a previous system.

(PATA2SATA3)

This item comes with a 2 Years warranty

Star Tech Bi-Directional SATA IDE Adapter ConverterThe PATA2SATA3 is a bi-directional SATA IDE adapter/converter that lets you connect a Serial ATA drive to a legacy IDE port, or an IDE drive to a SATA motherboard port. A cost-effective solution for upgrading existing IDE systems to support SATA hard drives or optical drives, the SATA/IDE adapter eliminates the expense of having to purchase a controller card while saving the expansion slot that would be required for card installation. In addition to SATA hard drive installation, the adapter can be reversed in order to connect older IDE drives to a newer SATA-enabled motherboard, making it easy to retrieve old files from a previous system.

Packaging Information
Shipping (Package) Weight  : 102 g [3.6 oz]

Performance
Hardware Raid Supported  : No
Type and Rate  : SATA I (1.5 Gbps)

Physical Characteristics
Color  : Black
Material  : Plastic
Product Height  : 1.1 cm [0.4 in]
Product Length  : 61 mm [2.4 in]
Product Width  : 50 mm [2 in]
Weight of Product  : 20 g [0.7 oz]

Software
OS Compatibility  : OS independent; No software or drivers required

What's in the Box

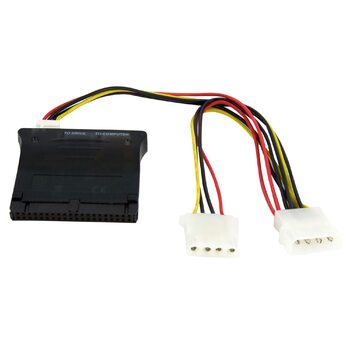

Included in Package  : Bi-Directional SATA IDE Converter
Instruction Manual
SATA Cable
SP4 to Dual LP4 Y Power Adapter

Packaging Information
Package Width  : 17.3 cm [6.8 in]
Package Length  : 14.2 cm [5.6 in]
Package Height  : 32 mm [1.3 in]

Indicators
LED Indicators  : Power - Red
HDD Activity - Green

Hardware
Number of Drives  : 1
Drive Size  : 2.5in & 3.5in
Compatible Drive Types  : SATA & IDE
Chipset ID  : SunplusIT - SPIF223A

Environmental
Storage Temperature  : -40°C to 150°C (-40°F to 302°F)
Operating Temperature  : 0°C to 70°C (32°F to 158°F)
Humidity  : 90% RH

Connector(s)
Connector Type(s)  : SP4 (4 pin, Small Drive Power) Male
SATA (7 pin, Data) Plug
IDE (40 Pin, EIDE/PATA) Female

Model # PATA2SATA3
Barcode # 065030836982
Brand STAR TECH
Shipping Weight 0.1000kg
Shipping Width 0.140m
Shipping Height 0.030m
Shipping Length 0.170m
Shipping Cubic 0.000786000m3
Type Adapter/Converter
