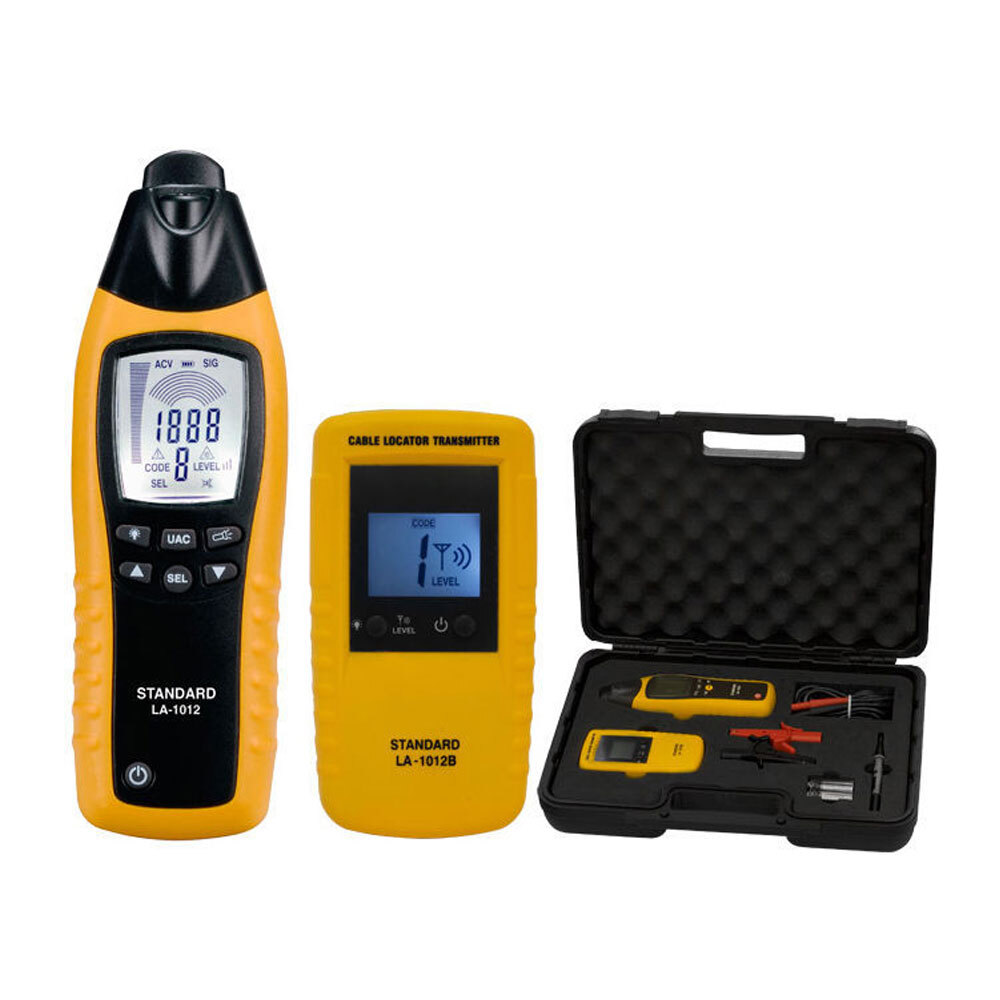

Doss Wire Finder In Walls Cable Locator Tracer Set w/ Carry Case

This item comes with 12-month Warranty

This professional general purpose cable locator is ideal for tracing cables in walls and underground, locating fuses/breakers on final circuits and locating interruptions and short-circuits in cables and electrical floor heating systems. It can also be used for tracing metallic water and heating pipes. The unit is supplied as a complete kit comprising of a transmitter and receiver in a purpose-made carry case. The receiver also incorporates a torch function for working in the dim light location. Note: The probe supplied in the box is not suitable for an Australian power socket, if you want to test the PowerPoint, please use our 4mm plug test lead, which is 03020TL, code number 27912134. For all applications ( live or dead cable ) without additional instruments Set includes a transmitter and a receiver Proven digitally coded sender signal guarantees clear signal identification Automatic or manual adjustment of receiving signal sensitivity Acoustical receiving signal switchable Additional torch lamp function for working in dark environment Voltage measurement range: Transmitter: 12V, 50V, 120V, 230V, 400V Frequency range: Transmitter: 0...60Hz Output signal: Transmitter: 125kHz Voltage measurement range: Transmitter: 12V, 50V, 120V, 230V, 400V Frequency range: Transmitter: 0...60Hz Output signal: Transmitter: 125kHz Voltage: Transmitter: up to 400V AC/DC Tracing depth cable location: Receiver: 0...2.5m wall/underground cables Main voltage detection: Receiver: 0...0.4m Operating temperature: Transmitter: 0 to 40 °C,Receiver: 0 to 40 °C Storage temperature: Transmitter: -20 °C to 60 °C, Receiver: -20 °C to 60 °C Humidity (without condensation: Transmitter: Max. 80% relative, Receiver: Max. 80% relative Operating Altitude: Transmitter up to 2000m, receiver up to 2000m Electrical safety: EN61010-1 Overvoltage category: CAT III 300V Dimensions Approx.: 6 x 3.7 x 19 cm (WxDxH)

• Voltage measurement range: Transmitter: 12V, 50V, 120V, 230V, 400V

• Frequency range: Transmitter: 0...60Hz

• Output signal: Transmitter: 125kHz

• Voltage: Transmitter: up to 400V AC/DC

• Tracing depth cable location: Receiver: 0...2.5m wall/underground cables

• Main voltage detection: Receiver: 0...0.4m

Environment Specifications:

• Operating temperature: Transmitter: 0 to 40 °C,Receiver: 0 to 40 °C

• Storage temperature: Transmitter: -20 °C to 60 °C, Receiver: -20 °C to 60 °C

• Humidity (without condensation: Transmitter: Max. 80% relative, Receiver: Max. 80% relative

• Operating Altitude: Transmitter up to 2000m, receiver up to 2000m

Safety Specifications:

• Electrical safety: EN61010-1

• Overvoltage category: CAT III 300V

• Dimensions Approx.: 6 x 3.7 x 19 cm (WxDxH)

• Weight: 229g
