Doss NF8108 RJ45 LAN Cable Tester Length Faults Locator Remote Identifier LCD

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

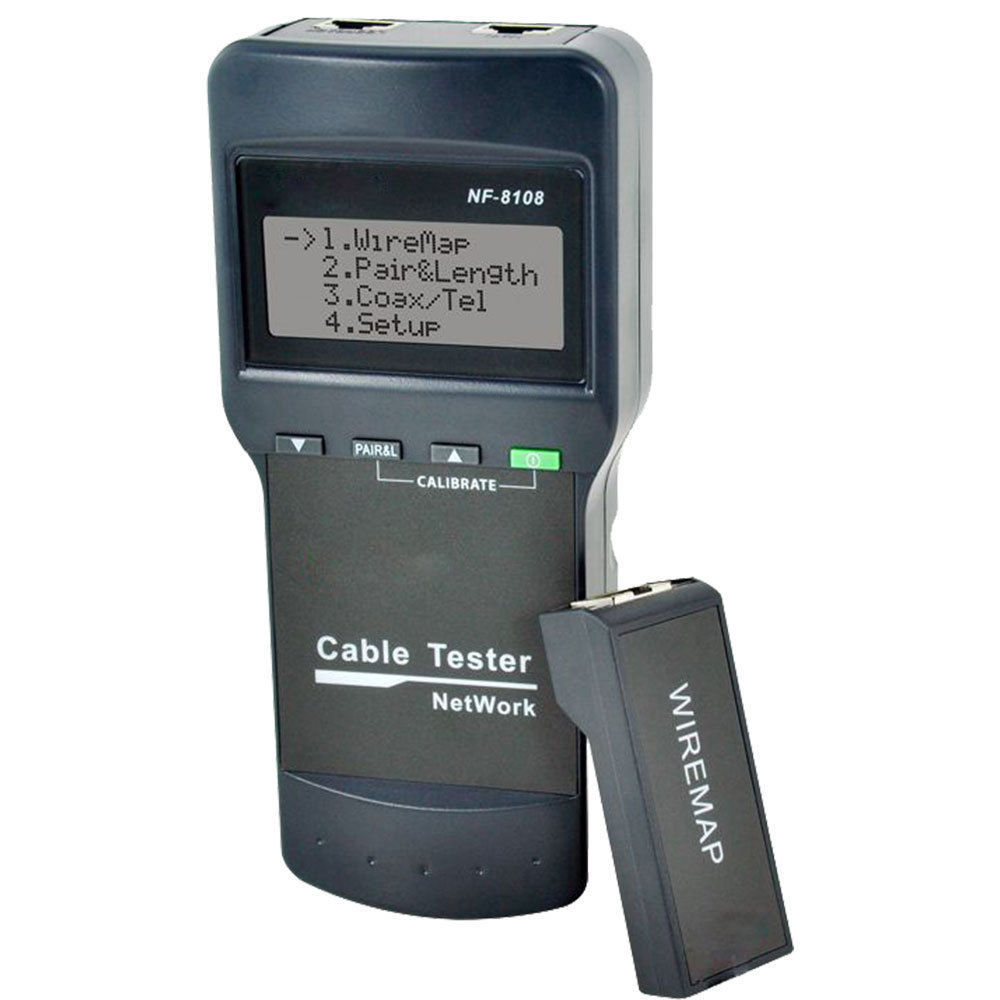

The NF8108 comes with a main tester and remote identifiers. It is especially designed to check and test network cable, such as open, short and reserve. NF8108 can also test cable length accurately which make it becomes an essential tool in communiction field.

  • Measure network cable length and determine the distance of open and short circuit.
  • Portable unit with long battery life (wait-case 50 hours).
  • Automatically time-delay shut off.
  • Self-checking and automatically compensate any change inbattery capacity or ambient temperature.

(NF8108)

This item comes with a 12 month warranty

The NF8108 comes with a main tester and remote identifiers. It is especially designed to check and test network cable, such as open, short and reserve. NF8108 can also test cable length accurately which make it becomes an essential tool in communiction field. Measure network cable length and determine the distance of open and short circuit. Portable unit with long battery life (wait-case 50 hours). Automatically time-delay shut off. Self-checking and automatically compensate any change inbattery capacity or ambient temperature. Transmitter Indictor: LCD 53x25 mm Tone frequency: 225Hz Max. distance of cable map: 300m Max. working current: Less than 70mA Compatible connectors: RJ45 Faults LCD display: LCD display Low battery display: LCD (6.5V) Voltage protection: AC 60V/ DC 42V Battery Type: DC 4x1.5V Dimension (LxWxD): 184x84x46mm Remote unit Compatible connectors: RJ45 Dimension (LxWxD): 78x33x22mm

Transmitter

  • Indictor: LCD 53x25 mm
  • Tone frequency: 225Hz
  • Max. distance of cable map: 300m
  • Max. working current: Less than 70mA
  • Compatible connectors: RJ45
  • Faults LCD display: LCD display
  • Low battery display: LCD (6.5V)
  • Voltage protection: AC 60V/ DC 42V
  • Battery Type: DC 4x1.5V
  • Dimension (LxWxD): 184x84x46mm

Remote unit

  • Compatible connectors: RJ45
  • Dimension (LxWxD): 78x33x22mm
Model # NF8108
Barcode # 9328202017772
Brand DOSS
Shipping Weight 0.5000kg
Shipping Width 0.120m
Shipping Height 0.250m
Shipping Length 0.070m
Shipping Cubic 0.002100000m3
Type Computer Cable Tester
