Doss Cable Tracer with AC Filter

This item comes with a 12-month warranty.

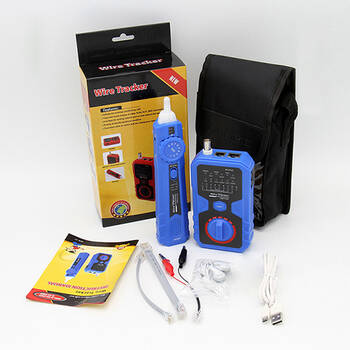

Find cables easier with the help of this Doss Cable Tracer with AC Filter. Quickly finding the required line pairs among numerous ones. Trace cable with continuous and clear tone, AC Currentrejection. It tests the physical connection status of network cable, such as open, short, miswire and split connection Port flash function directly find target cables connected with switch. Telephone Line Test: judging TIP or PING line and judging whether the telephone line is idle, ringing or off-hook. Includes: 1x Receiver 1x Transmitter Transmitter: The mas distance of cable mapping: 305m Cable test types: 130kHz Crosstalk test: Yes Tone mode: 2 tones adjustable Max signal voltage: 8Vp-p Max distance of transmission: 600m for RJ45 & RJ11 cable 100m for BNC cable  Battery type: 3.7V lithium battery, 1400 mah Size: 135x78x35mm Receiver: Port: RJ45-8P Anti-jamming: yes Battery type: 3.7V lithium battery, 1400 mah Size: 203 x 45x 33mm

Transmitter:

• The mas distance of cable mapping: 305m

• Cable test types: 130kHz

• Crosstalk test: Yes

• Tone mode: 2 tones adjustable

• Max signal voltage: 8Vp-p

• Max distance of transmission: 600m for RJ45 & RJ11 cable 100m for BNC cable

• Battery type: 3.7V lithium battery, 1400 mah

• Size: 135x78x35mm

Receiver:

• Port: RJ45-8P

• Anti-jamming: yes

• Battery type: 3.7V lithium battery, 1400 mah

• Size: 203 x 45x 33mm
