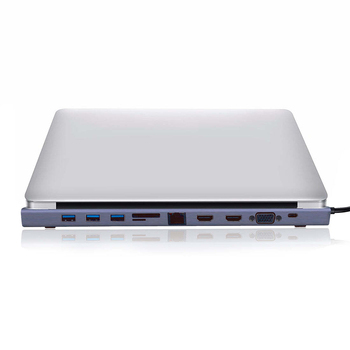

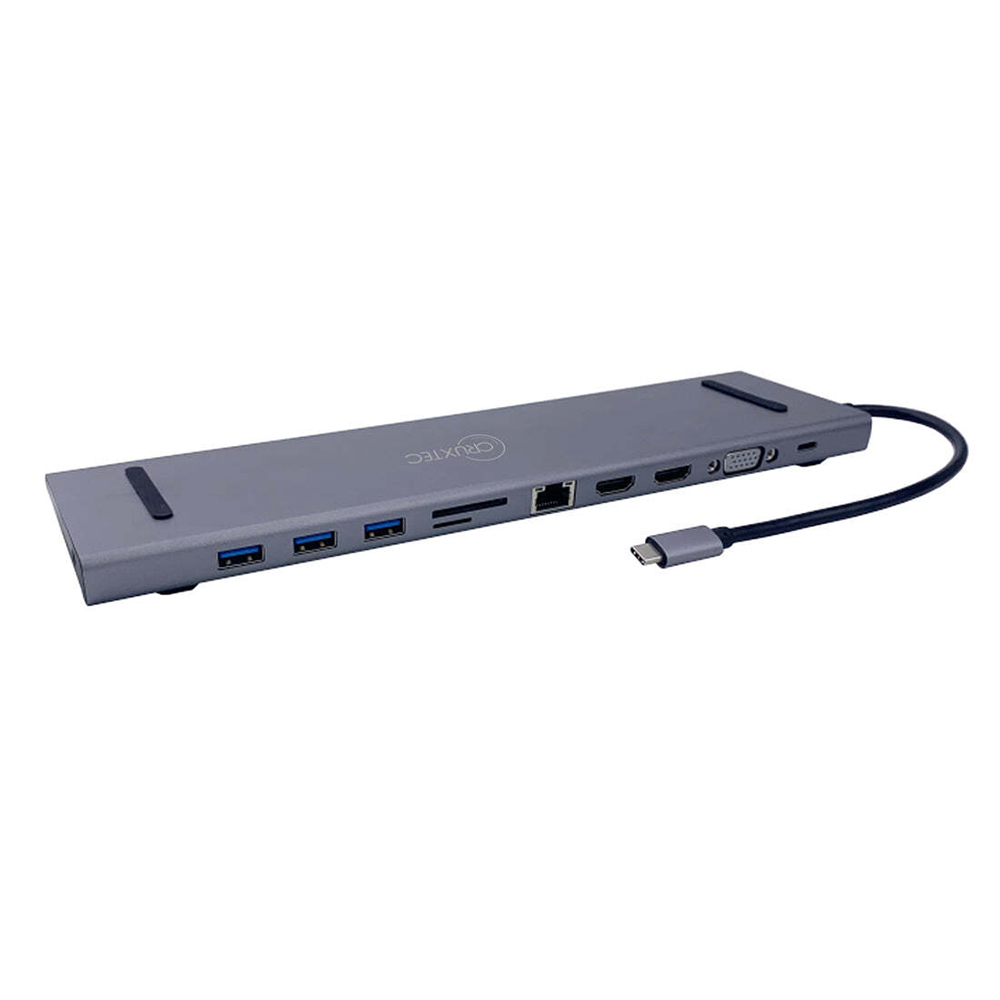

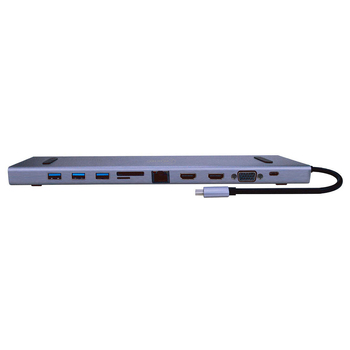

Cruxtec CH02-SG 11 in 1 USB-C Multifunction Docking Station with 100W PD

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Cruxtec CH02-SG 11 in 1 USB-C Multifunction Docking Station with 100W PD

HDMI port supports up to 4K/30Hz, VGA port supports up to 1080p/60Hz
Supports Mirror or Extended mode (MST) on Windows
USB-C PD port for charging the laptop with up to 100W of power
Up to 5Gbps data transfer rate on 3 x USB-A ports
Stylish aluminum alloy housing
Built-in flexible 15cm Cable
Plug-and-play

Specifications:
Input: USB-C Male ( USB3.1 GEN2 10GBPS )
Output: 2 * HDMI Female / 1* VGA Female / 3 * USB3.0 / 1* RJ45 Gigabit Ethernet (10/100/1000Mbps) / 1 * SD&TF Card Reader / 1 * 3.5mm audio output Jack
Power Transmission: 1 * USB-C PD3.0 Charging port - up to 100W
Resolution: HDMI output up to 4K/30Hz, VGA output up to 1080p/60Hz
MST Configuration: Dual Display (HDMI+HDMI) 1080P/60Hz, Dual Display (HDMI+VGA) 1080P/60Hz , Triple Display(HDMI*2+VGA) 1080P/60Hz*2+800*600
Material: Aluminum+ABS
Cable Diameter: 4.7mm
Cable Length: 15cm
Chipsets: RTS5411+LT8712EXI+GL850G+GL823K+RTL8153
Colour: Space grey
1 Shield Type: Aluminium foil shield
1 Platforms: Windows / Mac OS
Cable Length: 15cm

(CH02-SG)

Standard Consumer Warranty
Cruxtec CH02-SG 11 in 1 USB-C Multifunction Docking Station with 100W PD HDMI port supports up to 4K/30Hz, VGA port supports up to 1080p/60Hz Supports Mirror or Extended mode (MST) on Windows USB-C PD port for charging the laptop with up to 100W of power Up to 5Gbps data transfer rate on 3 x USB-A ports Stylish aluminum alloy housing Built-in flexible 15cm Cable Plug-and-playSpecifications: Input: USB-C Male ( USB3.1 GEN2 10GBPS ) Output: 2 * HDMI Female / 1* VGA Female / 3 * USB3.0 / 1* RJ45 Gigabit Ethernet (10/100/1000Mbps) / 1 * SD&TF Card Reader / 1 * 3.5mm audio output Jack Power Transmission: 1 * USB-C PD3.0 Charging port - up to 100W Resolution: HDMI output up to 4K/30Hz, VGA output up to 1080p/60Hz MST Configuration: Dual Display (HDMI+HDMI) 1080P/60Hz, Dual Display (HDMI+VGA) 1080P/60Hz , Triple Display(HDMI*2+VGA) 1080P/60Hz*2+800*600 Material: Aluminum+ABS Cable Diameter: 4.7mm Cable Length: 15cm Chipsets: RTS5411+LT8712EXI+GL850G+GL823K+RTL8153 Colour: Space grey1 Shield Type: Aluminium foil shield1 Platforms: Windows / Mac OSCable Length: 15cm
Model # CH02-SG
Barcode # 0787303420451
Brand CRUXTEC
Shipping Weight 0.3000kg
Shipping Width 0.320m
Shipping Height 0.020m
Shipping Length 0.100m
Shipping Cubic 0.000640000m3
Type Docking Adapter
