CONTACTLESS EXIT DEVICE EX-CL-RTS1000

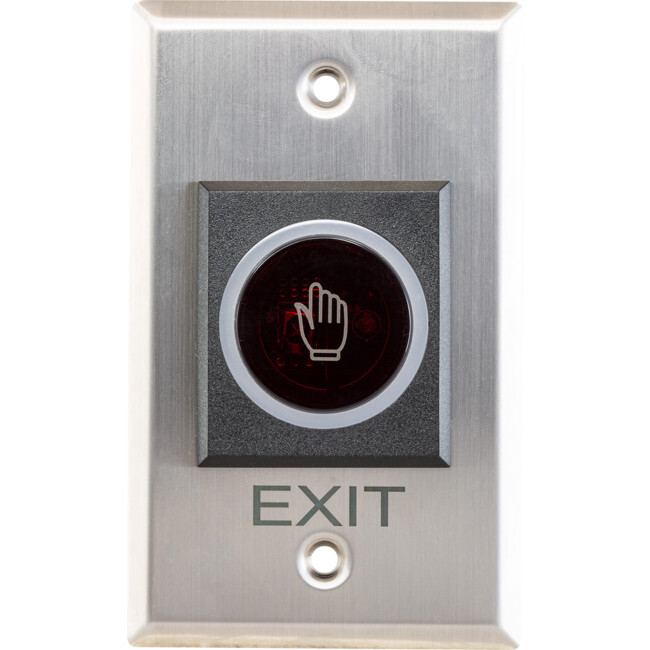

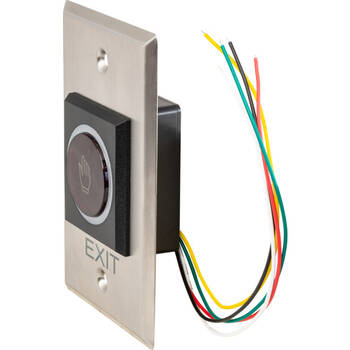

RTS1000 CONTACTLESS EXIT DEVICE

Touchless Switches Ensure Safe and Sanitary Egress

Features:

  • Uses infrared sensor technology for contactless switch activation
  • For sanitary environment such as hospitals, restaurants, bathrooms, or labs
  • Stainless steel flush faceplate, GPO size
  • Bi-color LED blue/green status indicator
  • Blue standby changes to green when activated

Specs:

  • Sensor Range: 0.1~10 cm
  • Relay: 3A / 12-28VDC

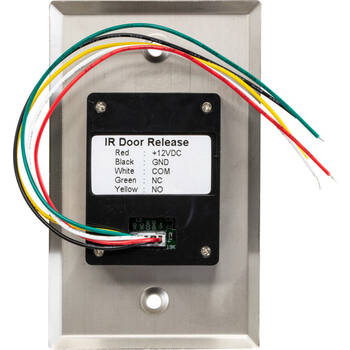

  • Contacts: NO/COM/NC
  • Current Draw: Pull 40mA; Standby 15mA
  • Operating Voltage: 12VDC
  • Dimensions: 119.5 x 79.5 x 31.2 (mm)
  • Operating Temperature: -20C ~ +55C

(RTS1000)

This item comes with a 12 months warranty

CONTACTLESS EXIT DEVICE EX-CL-RTS1000RTS1000 CONTACTLESS EXIT DEVICE Touchless Switches Ensure Safe and Sanitary Egress Features: Uses infrared sensor technology for contactless switch activation For sanitary environment such as hospitals, restaurants, bathrooms, or labs Stainless steel flush faceplate, GPO size Bi-color LED blue/green status indicator Blue standby changes to green when activated Specs: Sensor Range: 0.1~10 cm Relay: 3A / 12-28VDC Contacts: NO/COM/NC Current Draw: Pull 40mA; Standby 15mA Operating Voltage: 12VDC Dimensions: 119.5 x 79.5 x 31.2 (mm) Operating Temperature: -20C ~ +55C
Model # RTS1000
Brand NIDAC
Shipping Weight 0.1000kg
Shipping Width 0.120m
Shipping Height 0.400m
Shipping Length 0.080m
Shipping Cubic 0.003840000m3
Type Exit Button
