COAXIAL VIDEO SURGE PROTECTOR BNC

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

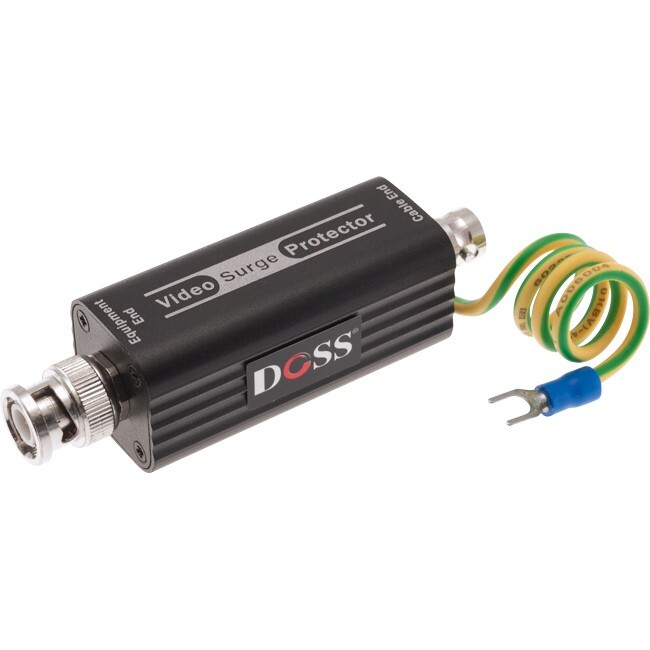

Coaxial Video Surge Protector

The VSP01 is a signal channel coaxial video surge protector designed according to IEC and GB standards. It adopts BNC connectors, features quicker response time, lower residual voltage output and lower insertion loss with internationally recognised branded semiconductor components to protect devices from lightning strikes or damage by overvoltage, overcurrent or surge voltage. It is widely used in cable CCTV transmission, and the protection of electronic monitoring systems such as DVRs, LETs and cameras etc

Features:

  • Designed with lower value capacitors results in lower insertion loss and quicker response time

  • Large through-flow capacity, long life

  • Adopts internationally recognised branded components

  • Multi-level protection

  • Low residual voltage

  • Easy installation and convenient maintenance

  • Frequency bandwidth: 0~300MHz

  • Dimensions Approx.: 60 x 25 x 25 mm(LxWxH)

  • Housing: Aluminum alloy

  • Body Color: Black

  • Net Weight: 60g

(VSP01)

Standard Consumer Warranty
Coaxial Video Surge Protector The VSP01 is a signal channel coaxial video surge protector designed according to IEC and GB standards. It adopts BNC connectors, features quicker response time, lower residual voltage output and lower insertion loss with internationally recognised branded semiconductor components to protect devices from lightning strikes or damage by overvoltage, overcurrent or surge voltage. It is widely used in cable CCTV transmission, and the protection of electronic monitoring systems such as DVRs, LETs and cameras etc Features: Designed with lower value capacitors results in lower insertion loss and quicker response time Large through-flow capacity, long life Adopts internationally recognised branded components Multi-level protection Low residual voltage Easy installation and convenient maintenance Frequency bandwidth: 0~300MHz Dimensions Approx.: 60 x 25 x 25 mm(LxWxH) Housing: Aluminum alloy Body Color: Black Net Weight: 60g
Model # VSP01
Barcode # 9328202015242
Brand DOSS
Shipping Weight 0.0900kg
Shipping Width 0.060m
Shipping Height 0.030m
Shipping Length 0.030m
Shipping Cubic 0.000054000m3
Type Surge Protector
