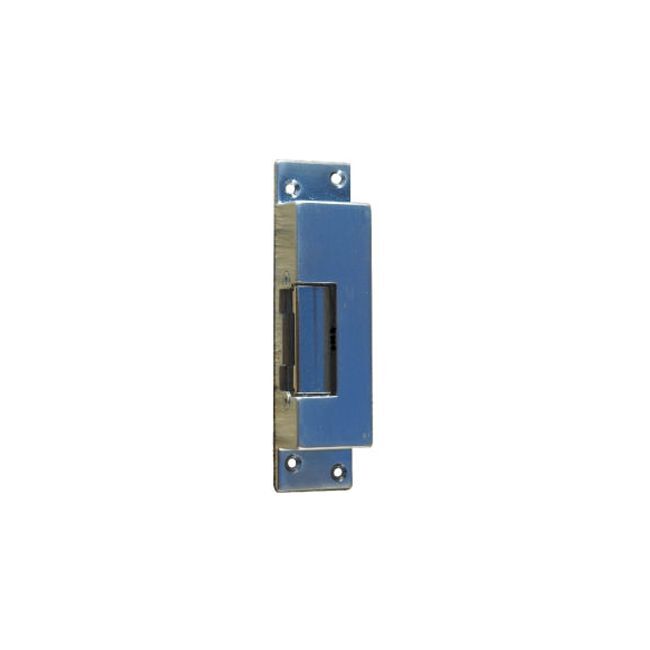

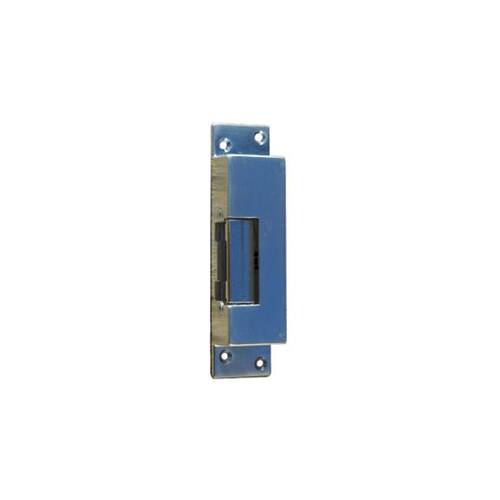

CHROME SURFACE MOUNT LATCH ELECTRIC DOOR RELEASE / LOCK

CHROME SURFACE MOUNT ELECTRIC DOOR STRIKE / LATCH

Optional surface mount electric door latch

Function: On activation of the strike release the door (power to open) The strike will unlock when power is applied and will remain unlocked until the power is removed.

  • CE Approved
  • C-Tick Certified
  • TVU Approved
  • 5 Year Warranty

FEATURES:

  • Surface mount type, face mount for easy installation
  • Ideal for Gates and Doors where rim locks are used
  • Low current 33Ω COIL as standard, 12v DC, 350mA
  • Ideal for, Access Control and Intercoms applications
  • Strong durable construction, Satin Chrome
  • Quality product built to ISO9227 standards
  • ECONOMICALY priced
  • 5 Year Manufacturers Warranty

SPECIFICATIONS:

  • Type: Surface face mount design
  • Operational voltage: 12v DC, or 12-16v AC
  • Current draw: 360mA
  • Coil type: 30Ω coil
  • Operation features: Standard momentary operation
  • Colour: Satin Chrome Plated
  • Dimensions: H 146mm x W 36mm x D 25mm
  • Warranty: 5 Years Manufactures Warranty



(DOR190A)

This item comes with a 12 months warranty

CHROME SURFACE MOUNT LATCH ELECTRIC DOOR RELEASE / LOCKCHROME SURFACE MOUNT ELECTRIC DOOR STRIKE / LATCH Optional surface mount electric door latch Function: On activation of the strike release the door (power to open) The strike will unlock when power is applied and will remain unlocked until the power is removed. CE Approved C-Tick Certified TVU Approved FEATURES: Surface mount type, face mount for easy installation Ideal for Gates and Doors where rim locks are used Low current 33Ω COIL as standard, 12v DC, 350mA Ideal for, Access Control and Intercoms applications Strong durable construction, Satin Chrome Quality product built to ISO9227 standards ECONOMICALY priced SPECIFICATIONS: Type: Surface face mount design Operational voltage: 12v DC, or 12-16v AC Current draw: 360mA Coil type: 30Ω coil Operation features: Standard momentary operation Colour: Satin Chrome Plated Dimensions: H 146mm x W 36mm x D 25mm
Model # DOR190A
Barcode # 8425793028833
Brand DORCAS
Shipping Weight 0.3900kg
Shipping Width 0.150m
Shipping Height 0.030m
Shipping Length 0.040m
Shipping Cubic 0.000180000m3
Type Door Latch
