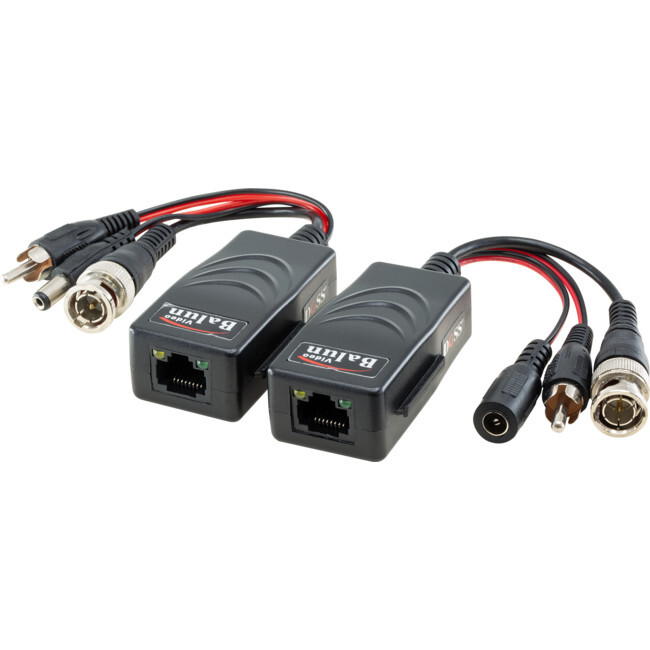

The VPAB45HD is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video, power and audio signal via one cost-effective Unshielded Twisted Paired (UTP) cable.

Features:

  • Compatible with all HD-TVI, HD-CVI and AHD analogue cameras

  • 1-CH Passive Video, Power & Audio Transceiver (12/24V DC/AC)

  • Transmit power signal up to 200m in pairs

  • Colour video up to 400m via UTP cat5e/6 cable

  • Audio signal up to 600m in pairs

  • NTSC, PAL & SECAM video format compatible

  • Real-time transmission

  • RJ45 Jack for UTP cat5e/6 cable

  • BNC plug with an extended mini-coax pigtail

  • No power required

  • Exceptional interference rejection

  • Built-in Transient Voltage Suppressors for surge protection

  • Lighting protection design Grade: III

  • 50db crosstalk and noise immunity

  • Wave Filter Design, Anti-Static Design

  • Compact size and easy installation

  • ABS engineering plastic housing

(VPAB45HD)

Standard Consumer Warranty
The VPAB45HD is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video, power and audio signal via one cost-effective Unshielded Twisted Paired (UTP) cable. Features: Compatible with all HD-TVI, HD-CVI and AHD analogue cameras 1-CH Passive Video, Power & Audio Transceiver (12/24V DC/AC) Transmit power signal up to 200m in pairs Colour video up to 400m via UTP cat5e/6 cable Audio signal up to 600m in pairs NTSC, PAL & SECAM video format compatible Real-time transmission RJ45 Jack for UTP cat5e/6 cable BNC plug with an extended mini-coax pigtail No power required Exceptional interference rejection Built-in Transient Voltage Suppressors for surge protection Lighting protection design Grade: III 50db crosstalk and noise immunity Wave Filter Design, Anti-Static Design Compact size and easy installation ABS engineering plastic housing
Model # VPAB45HD
Barcode # 9328202031242
Brand DOSS
Shipping Weight 0.1100kg
Shipping Width 0.100m
Shipping Height 0.070m
Shipping Length 0.070m
Shipping Cubic 0.000490000m3
Type Transceiver
