8 PORT 265W POE SWITCH

8 PORT 265W POE SWITCH

8-Port 10/100Mbps IEEE 802.3af/802.3at PoE Switch

Features
Provide 8 x 100Mbps Ethernet ports, 2 x 1000Mbps combo up-link port (2x10/100/1000Mbps port or 2x1000Base-XSFP optical fiber port)
Support End-Span method complies with IEEE802.3 af/atstandards, can supply max 30W power which is possible to power high-power infrared cameras.
Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3z, IEEE802.3af/at standards.
Support IEEE802.3x full-duplex flow control, support Auto MDI/MDIX.
Support port-base Vlan, prevent from broadcast storm so that make data conversion more efficient and safe.
Restart function helps master IC reset wholly. Easy for users to solve network failure without swapping
Excellent lightning protection, lightning capacity up to 4KV
Easy to install and operate on walls or on the desktops
Overviews

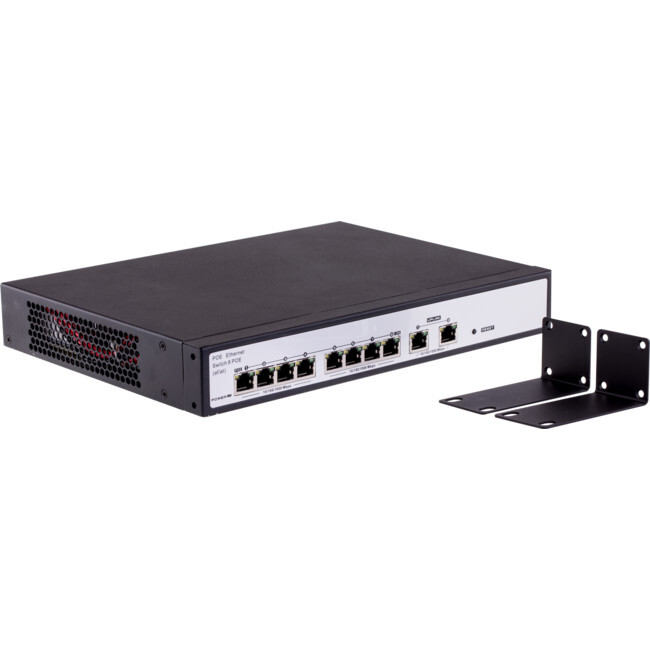

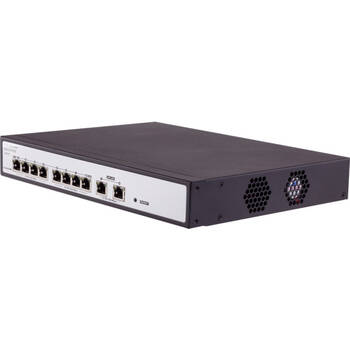

POE08265 is specialized unmanaged PoE switch designed for video surveillance and network project system, etc. It provides 8 x 100Mbps Ethernet ports and 2 x 1000Mbps combo uplink port (2x10/100/1000Mbps port or 2x1000Base-X SFP optical fiber port), can effectively prevent whole system from broadcast storm so that make the data transfer more safe.
This general network switch and PoE network switch.can meetcustomers’ general demands. PoE network switch with PoE function, designed for high-definition network cameras’ internet access. It provides 8 100Mbps PoE Ethernet switches, complies with IEEE802.3af/at standards, and also simplifies wiring, avoids the troublesome of installing power socket for powered devices.

Applications
Security Monitoring System
Multimedia Network Teaching System
Medical Monitoring Display System
Industrial Automation Control System
Banking, securities, financial information display system
Remote Network Server Monitoring
Department Store Security
Casino Security
Hospitals, Airports and banks
School Campuses
