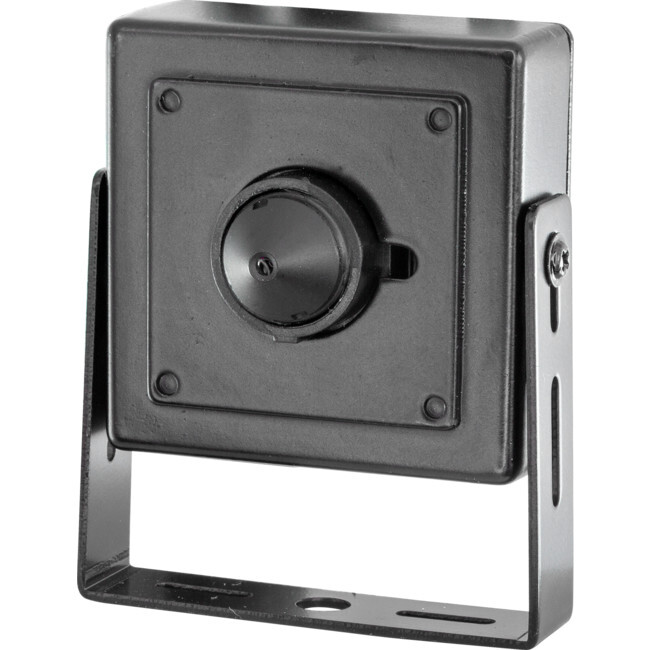

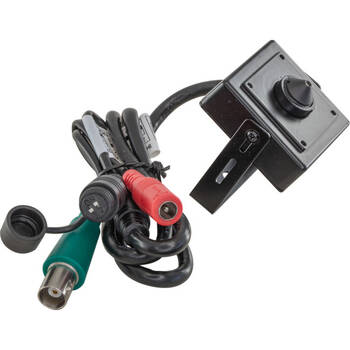

5MP AHD MINI PINHOLE CAMERA 3.7MM TVI CVI OR 700TVL ANALOG

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

5MP AHD MINI PINHOLE CAMERA 3.7MM TVI CVI OR 700TVL ANALOG

  • Coaxial transmission AHD HD camera

  • Adopt low illumination1/2.7" 5MP CMOS image  sensor

  • Support CVBS 1280H/AHD, 4M/AHD, 5M/CVI-HD, 4M/TVI-HD,5M output

  • Video coaxial transmission distance  up to 500 m

  • OSD can select AHD CVI-HD TVI-HD or CVBS standard definition analogue signal output mode

  • Support D-WDR, 2D NR

  • OSD menu, various languages

  • Transmission distance: 75-3/300m,75-5/500m

  • Operating temperature: -10°C ~ 55°C

  • Operating humidity: 0%-90%

  • Power consumption: =2w

  • Power supply: DC12V

  • Dimensions(mm): 43(W)*43(H)*15(L)mm

  • Weight: 150g

(PH5AHD)

Standard Consumer Warranty

5MP AHD MINI PINHOLE CAMERA 3.7MM TVI CVI OR 700TVL ANALOG Coaxial transmission AHD HD camera Adopt low illumination1/2.7" 5MP CMOS image  sensor Support CVBS 1280H/AHD, 4M/AHD, 5M/CVI-HD, 4M/TVI-HD,5M output Video coaxial transmission distance  up to 500 m OSD can select AHD CVI-HD TVI-HD or CVBS standard definition analogue signal output mode Support D-WDR, 2D NR OSD menu, various languages Transmission distance: 75-3/300m,75-5/500m Operating temperature: -10°C ~ 55°C Operating humidity: 0%-90% Power consumption: =2w Power supply: DC12V Dimensions(mm): 43(W)*43(H)*15(L)mm Weight: 150g
Model # PH5AHD
Barcode # 9328202031402
Brand DOSS
Shipping Weight 0.1500kg
Shipping Width 0.200m
Shipping Height 0.050m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
Type Door Camera
