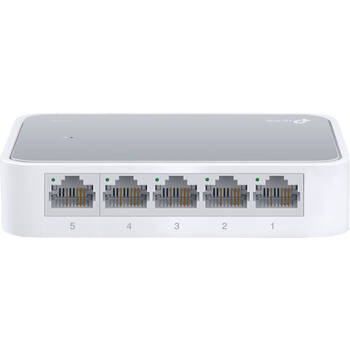

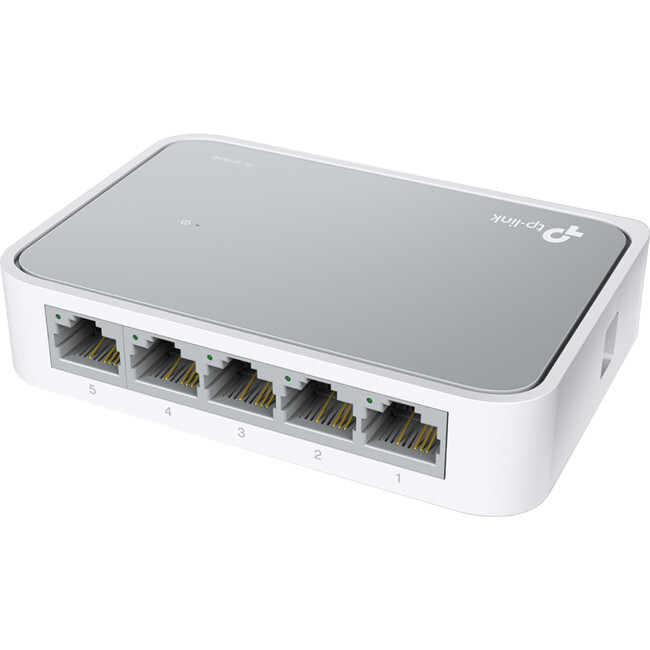

5 PORT ETHERNET SWITCH / HUB MINI DESKTOP 10/100M TP-LINK

TL-SF1005D 5-port 10/100Mbps Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All portssupport Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.

The TP-LINK TL-SF1005D 5-port 10/100M Fast Ethernet Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network. It will boost your network performance up to full duplex data transfer. Its wire-speed switching that forwards packets can be as fast asthe speed that your network delivers those packets to them.
1Gbps aggregated throughout, true non-blocking switch architecture, full wire speed forwarding.
Store and forward switching scheme capability to support rate adaptation and ensures data integrity.
N-way Auto-negotiation for any port. This allows for auto-sensing of speed (10/100Mbps) and auto-detecting mode(Full-duplex or Half-duplex) thereby providing you with automatic and flexible
solutions in your network connections.
Zero-Packet Loss Backpressure flow control under half duplex mode.
Data forwarding rate 148,800 pps per port at 100% of wire-speed for 100Mbps speed.
Data forwarding rate 14,880 pps per port at 100% of wire-speed for 10Mbps speed.
Data filtering rate eliminates all error packets, runts, etc. at 148,800 pps per port at 100% of wire-speed for 100Mbps speed.
Data filtering rate eliminates all error packets, runts, etc. at 14,880 pps per port at 100% of wire-speed for 10Mbps speed.
4Kactive MAC address entry table with self-learning and table aging.
SPECIFICATIONS:
Standards IEEE802.3 10Base-T，IEEE802.3u 100Base-TX
Protocol CSMA/CD
Topology Star
RJ-45 5
Uplink None
Switching mode Store-and-Forward
Filtering and Transmitting speed 10Mbps: 14880pps, 100Mbps: 148800pps
Flow control mode IEEE 802.3x full-duplex flow controland back pressure flow control

(TLSF1005D)

This item comes with a 12 months warranty

5 PORT ETHERNET SWITCH / HUB MINI DESKTOP 10/100M TP-LINKTL-SF1005D 5-port 10/100Mbps Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All portssupport Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable. The TP-LINK TL-SF1005D 5-port 10/100M Fast Ethernet Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network. It will boost your network performance up to full duplex data transfer. Its wire-speed switching that forwards packets can be as fast asthe speed that your network delivers those packets to them. solutions in your network connections. Zero-Packet Loss Backpressure flow control under half duplex mode. Data forwarding rate 148,800 pps per port at 100% of wire-speed for 100Mbps speed. Data forwarding rate 14,880 pps per port at 100% of wire-speed for 10Mbps speed. Data filtering rate eliminates all error packets, runts, etc. at 148,800 pps per port at 100% of wire-speed for 100Mbps speed. Data filtering rate eliminates all error packets, runts, etc. at 14,880 pps per port at 100% of wire-speed for 10Mbps speed. 4Kactive MAC address entry table with self-learning and table aging. SPECIFICATIONS: Standards IEEE802.3 10Base-T，IEEE802.3u 100Base-TX Protocol CSMA/CD Topology Star RJ-45 5 Uplink None Switching mode Store-and-Forward Filtering and Transmitting speed 10Mbps: 14880pps, 100Mbps: 148800pps Flow control mode IEEE 802.3x full-duplex flow controland back pressure flow control
Model # TLSF1005D
Barcode # 6935364020064
Brand TP-LINK
Shipping Weight 0.1900kg
Shipping Width 0.300m
Shipping Height 0.150m
Shipping Length 0.200m
Shipping Cubic 0.009000000m3
Type Ethernet Switch
