4A 8 PORT DC12V REGULATED PS WALL MOUNTING BUILT IN 3A BATT

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

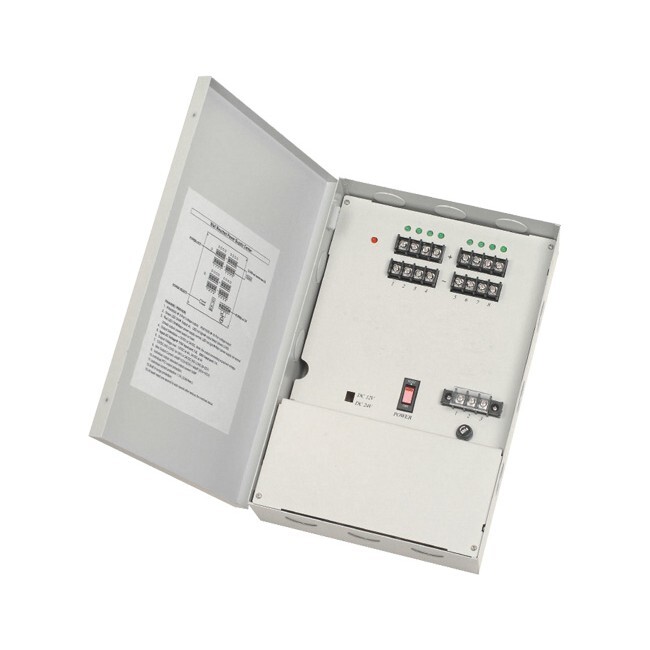

4Amp 8 port DC12V Regulated Wall Mounting Power Supply Builtin 3AMP Back up Battery

  • Red LED for Main power.

  • Individual Green LED for power indication.

  • Individual PTC 1.1Amp, (2.5A/4sec.) fuse on each output protection.

  • Toroidal transformer for high efficiency and low operating temperature.

  • Built-in Surge Protection

  • Wall mounting metal box

  • Overall Dimension: 330 x 210 x 89.5 mm

  • 4AMP, 8 Port Voltage output

  • Green LED ON: Output ok, LED not light: output failed (check LOAD)

  • Red LED ON: Major power supply normal, LED not light, Major power supply not normal (check the output: power switch or fuse)

  • Input AC Voltage„» 100V ~ 240V, L = LiveWire, N = Neutral Wire, E = Earth Wire.

  • Output Voltage load: 12VDC Regulated at 4AMP. (Recharge Battery status: 3.5AMP Max.)

  • Individual current protection: 1.1A, (2.5A/4sec.)

(PW408U)

Standard Consumer Warranty
4Amp 8 port DC12V Regulated Wall Mounting Power Supply Builtin 3AMP Back up Battery Red LED for Main power. Individual Green LED for power indication. Individual PTC 1.1Amp, (2.5A/4sec.) fuse on each output protection. Toroidal transformer for high efficiency and low operating temperature. Built-in Surge Protection Wall mounting metal box Overall Dimension: 330 x 210 x 89.5 mm 4AMP, 8 Port Voltage output Green LED ON: Output ok, LED not light: output failed (check LOAD) Red LED ON: Major power supply normal, LED not light, Major power supply not normal (check the output: power switch or fuse) Input AC Voltage„» 100V ~ 240V, L = LiveWire, N = Neutral Wire, E = Earth Wire. Output Voltage load: 12VDC Regulated at 4AMP. (Recharge Battery status: 3.5AMP Max.) Individual current protection: 1.1A, (2.5A/4sec.)
Model # PW408U
Barcode # 9328202023902
Brand DOSS
Shipping Weight 4.7100kg
Shipping Width 0.350m
Shipping Height 0.090m
Shipping Length 0.250m
Shipping Cubic 0.007875000m3
Type DC Adapter
