48V DC 2.5A POWER SUPPLY SWITCHMODE IEC NOT INCLUDED

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

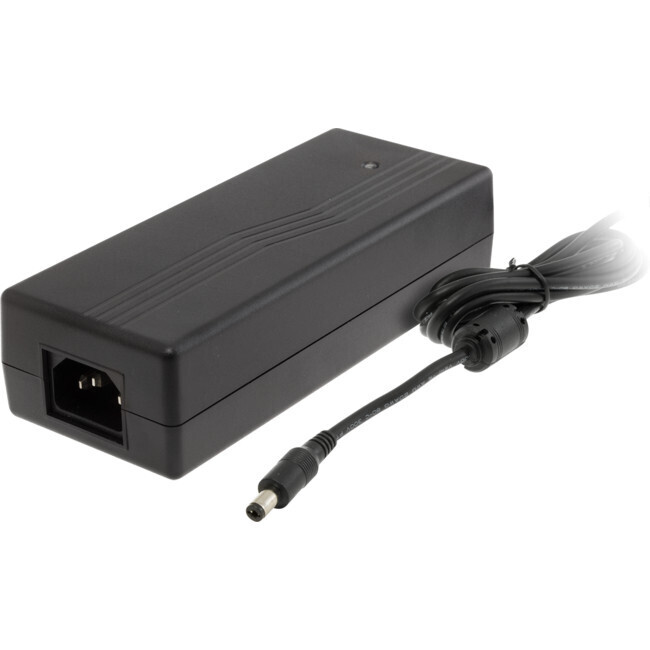

48V power supply specifically designed for power over Ethernet applications.

Features:

  • 2.1mm plug

  • 1.2m lead length

  • Short circuit protection

  • Over-current protection

  • Overvoltage protection

  • Output 48V 2.5A

  • Max. 120W output

  • Australia approval

Specifications:

  • Input Voltage: 100 - 264VAC

  • Output voltage: 48VDC @ 2.5A

  • Input Frequency: 47Hz to 63Hz

  • Power output: 120W Max.

  • Working temperature: 0°C to 40°C

  • Working humidity: 25% to 90% relative humidity (Non-condensing)

  • Efficiency: 85% min. at full load

  • Ripple/noise (mVpp): 2%

  • Dimension: 133x57x31mm

  • Plug diameter: 2.1mm

Note: IEC not included

(PS4825)

Standard Consumer Warranty
48V power supply specifically designed for power over Ethernet applications. Features: 2.1mm plug 1.2m lead length Short circuit protection Over-current protection Overvoltage protection Output 48V 2.5A Max. 120W output Australia approval Specifications: Input Voltage: 100 - 264VAC Output voltage: 48VDC @ 2.5A Input Frequency: 47Hz to 63Hz Power output: 120W Max. Working temperature: 0°C to 40°C Working humidity: 25% to 90% relative humidity (Non-condensing) Efficiency: 85% min. at full load Ripple/noise (mVpp): 2% Dimension: 133x57x31mm Plug diameter: 2.1mm Note: IEC not included
Model # PS4825
Barcode # 9328202017949
Brand DOSS
Shipping Weight 0.4000kg
Shipping Width 0.150m
Shipping Height 0.040m
Shipping Length 0.070m
Shipping Cubic 0.000420000m3
Type Power Supply
