450MBPS WIRELESS 'N' ROUTER 3T3R, 10/100MBPS - TP-LINK

450MBPS WIRELESS 'N' ROUTER 3T3R, 10/100MBPS - TP-LINK

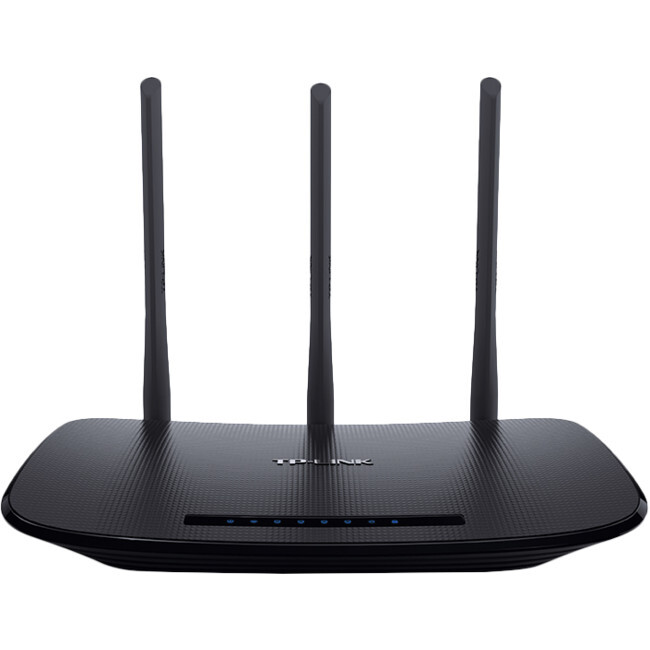

TP-LINK TL-WR940N Wireless N Router

450Mbps wireless speed is ideal for interruption sensitive applications like HD video streaming
Three antennas greatly increase the wireless robustness and stability
Easy wireless security encryption at a push of WPS button
IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC
*450Mbps wireless speed is only for TL-WR940N V6 while the earlier version is 300Mbps.

HARDWARE FEATURES

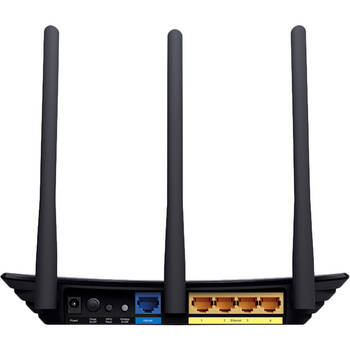

Interface:
4 10/100Mbps LAN PORTS
1 10/100Mbps WAN PORT
Button:
Wireless On/OffButton,WPS/Reset Button,
Power On/Off Button
Antenna:3*5dBi Omni Directional Antenna (RP-SMA)
External Power Supply:12VDC / 1A
Wireless Standards:IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions (W x D x H):9.1 x 5.7 x 1.4 in. (230 x 144 x 35mm)
WIRELESS FEATURES

Frequency:2.4-2.4835GHz
SignalRate
11n: Up to 450Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10%PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power
CE:
<20dBm(2.4GHz)
FCC:
<30dBm
Wireless Functions:Enable/DisableWireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security:64/128/152-bitWEP / WPA / WPA2,WPA-PSK / WPA2-PSK
SOFTWARE FEATURES

Quality of Service:WMM, BandwidthControl
WAN Type
Dynamic IP/Static IP/PPPoE/
PPTP(Dual Access)/L2TP(Dual Access)/BigPond
Management
Access Control
Local Management
Remote Management
DHCP
Server, Client,DHCP Client List,
Address Reservation
Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ
Dynamic DNS:DynDns, Comexe, NO-IP
VPN Pass-Through:PPTP, L2TP, IPSec (ESP Head)
AccessControl:Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security
DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
OTHERS

Certification:CE, FCC, RoHS
Package Contents
TL-WR940N
Power supply unit
Resource CD
Ethernet Cable
Quick Installation Guide
SystemRequirements:Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC®OS, NetWare®, UNIX® or Linux.
Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
