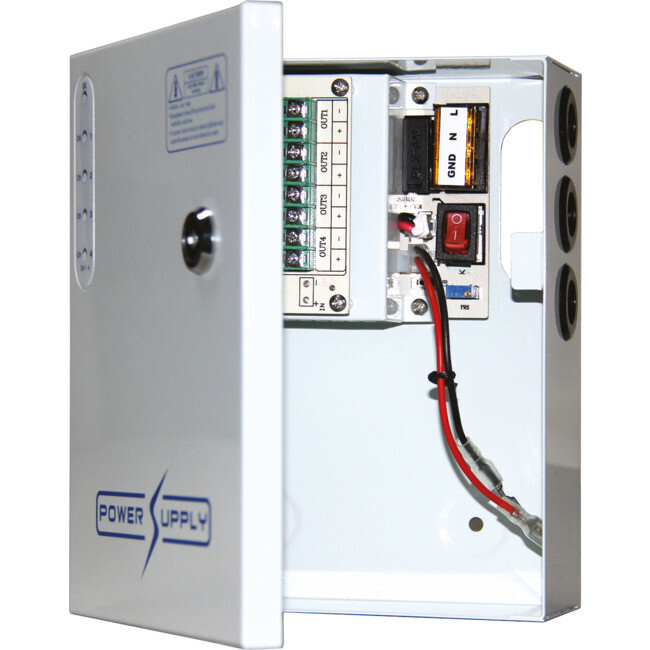

4 WAY 12V DC 5A POWER SUPPLY WITH UPS PFC SURGE PROTECTION

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

4 WAY 12V DC 5A POWER SUPPLY WITH UPS PFC SURGE PROTECTION

  • Backup battery charger: keep the system running when power cut off. Battery size: 7A/ h

  • Universal AC input range: 96-264VAC, 47~63Hz

  • Output

  • DC Voltage:  12V

  • Rated Voltage:  12V-14.8VDC

  • Current:  5A

  • Power: 60W

  • Ripple and Noise: ≤100mV

  • Voltage Accuracy: ±10%

  • Set-up Time: ≤2S@120VAC ≤1.0S@230VAC

  • Hold up Time: ≥10mS@120VAC,≥20mS@230VAC

  • Voltage Range: 96V~264VAC

  • Frequency Range: 47~63Hz

  • Efficiency (Type): 80%~95%

  • Over Load: 105%~150% (rated load)

  • Over Voltage:115%~150% (rated output voltage)

  • Shorted Circuit

  • Fuse Tube

  • Operating Temp. & Hum.: -10°C~45°C; 20%~90%RH (non-condensing)

  • Storage Temp. & Hum.: -20°C~+85°C 20%~95%

  • Dimension (L*W*H): 202*163*70mm

(PWU0412W05)

Standard Consumer Warranty
4 WAY 12V DC 5A POWER SUPPLY WITH UPS PFC SURGE PROTECTION Backup battery charger: keep the system running when power cut off. Battery size: 7A/ h Universal AC input range: 96-264VAC, 47~63Hz Output DC Voltage:  12V Rated Voltage:  12V-14.8VDC Current:  5A Power: 60W Ripple and Noise: ≤100mV Voltage Accuracy: ±10% Set-up Time: ≤2S@120VAC ≤1.0S@230VAC Hold up Time: ≥10mS@120VAC,≥20mS@230VAC Voltage Range: 96V~264VAC Frequency Range: 47~63Hz Efficiency (Type): 80%~95% Over Load: 105%~150% (rated load) Over Voltage:115%~150% (rated output voltage) Shorted Circuit Fuse Tube Operating Temp. & Hum.: -10°C~45°C; 20%~90%RH (non-condensing) Storage Temp. & Hum.: -20°C~+85°C 20%~95%  Dimension (L*W*H): 202*163*70mm
Model # PWU0412W05
Barcode # 9328202018090
Brand DOSS
Shipping Weight 1.3500kg
Shipping Width 0.370m
Shipping Height 0.090m
Shipping Length 0.250m
Shipping Cubic 0.008325000m3
Type DC Power Supply
