4 AMP DC-DC VOLTAGE CONVERTER GME INPUT 15-38V TO 12V REDUCER

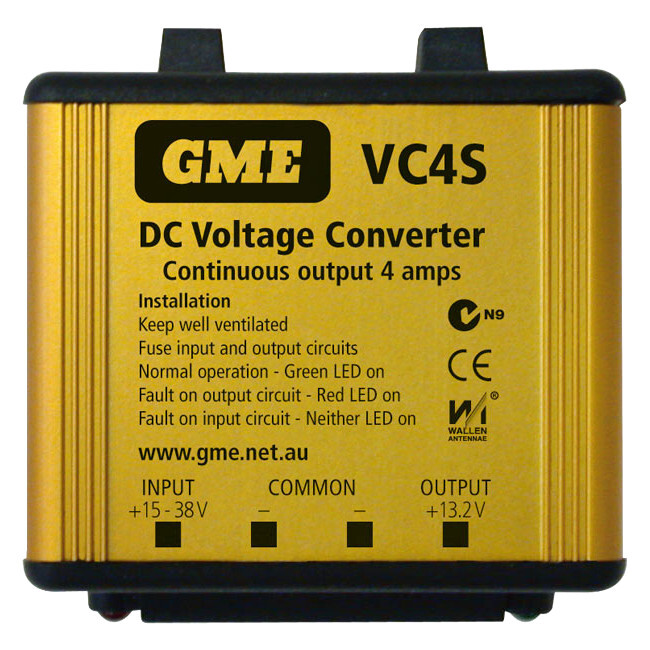

VC4S 4 AMP VOLTAGE CONVERTER - GME
4 Amp - 13.2 Volts DC Output
An innovative concept in Voltage Converters, with built-in protection for equipment and vehicle electrics.

Features:
24 - 13.2V Switch mode operation
High performance, high reliability
Soft shutdown fault protection
Quick and easy super-safe installation process

Specifications:
TypeSwitch mode non-isolated
Input (V DC)15-38
Output (V DC)13.2
Constant current 103.80% duty cycle (Amps)3.8
Intermittent current 30% duty cycle (Amps)7
Quiescent current<15mA
Oscillator frequency (kHz)60
Transient voltage (kV)Level 3 @ 2kV
ProtectionOverload reverse polarity short circuit soft shut-down
Efficiency (approx)91%
Connection4 x spade
ColourBlack - gold
Dimensions (mm)32 H x 73 W x 74 D
Weight152g including fixings



(VC4S)

This item comes with a 12 months warranty

Model # VC4S
Barcode # 9319493142304
Brand GME
