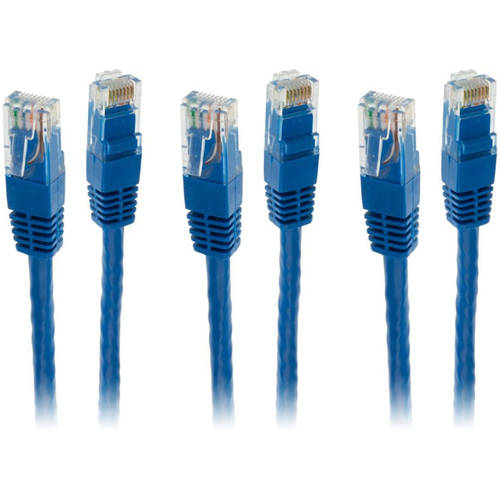

3x Pro2 20m Blue Cat 6 Cat6 RJ45 Ethernet Internet Network LAN Patch Cable Lead

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review



Category 6 cable, commonly referred to as Cat-6, is a cable standard for Gigabit Ethernet and other network protocols that are backward compatible with the Category 5/5e and Category 3 cable standards.

Compared with Cat-5 and Cat-5e, Cat-6 features more stringent specifications for crosstalk and system noise. The cable standard provides performance of up to 250 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) and 10GBASE-T (10-Gigabit Ethernet).

To maintain transmission characteristics and network integrity, it's essential to use the correct type of patch-cord to match the installation. A network port will perform only at the level of the LOWEST-rated component in the chain.

Features:

  • UTP CAT6 Patch Lead - Each cord has eight multi-strand conductors in 4 twisted-pair T568A color coded configuration.
  • Quality cable material - Fitted with 50µ Category-6 compliant 2-row (staggered pins) plug and fully-molded strain-relief boot.
  • Molded strain relief & Low profile flush moulded boots - With molded strain relief RJ45 male-to-male connectors this cable will be strong, and robust.
  • Packaged in heat-sealed hang-sell bags.

Complies with the applicable electrical transmission characteristics and flame tests specified in:

  • AS/ACIFS008:2006
  • ISO/IEC 11801 Category 6
  • TIA/EIA-568-B.2-1 Category 6

(LC6621B_3pk)

This item comes with 12 month Warranty

Category 6 cable, commonly referred to as Cat-6, is a cable standard for Gigabit Ethernet and other network protocols that are backward compatible with the Category 5/5e and Category 3 cable standards.  Compared with Cat-5 and Cat-5e, Cat-6 features more stringent specifications for crosstalk and system noise. The cable standard provides a performance of up to 250 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) and 10GBASE-T (10-Gigabit Ethernet).  To maintain transmission characteristics and network integrity, it's essential to use the correct type of patch-cord to match the installation. A network port will perform only at the level of the LOWEST-rated component in the chain.  Features:  UTP CAT6 Patch Lead - Each cord has eight multi-strand conductors in 4 twisted-pair T568A color coded configuration.  Quality cable material - Fitted with 50 Category-6 compliant 2-row (staggered pins) plug and fully-molded strain-relief boot.  Molded strain relief & Low profile flush moulded boots - With molded strain relief RJ45 male-to-male connectors this cable will be strong, and robust.  Packaged in heat-sealed hang-sell bags.  Complies with the applicable electrical transmission characteristics and flame tests specified in:  AS/ACIFS008:2006  ISO/IEC 11801 Category 6  TIA/EIA-568-B.2-1 Category 6

Conductor

Material Bare Copper

Size 24AWG

Construction 7/0.195±0.015mm

Insulation

Material HD-PE

Thickness Minimum at any point: 0.18mm

Maximum average: 0.20mm

Diameter: 0.96±0.03mm

Jacket

Material PVC

Thickness Minimum at any point: 0.50mm

Maximum average: 0.58mm

Diameter: 5.8±0.03mm

Category 6 Cable Standard:

  • Category 6 is a standard that aims to support transmission at frequencies up to 250 MHz over 100Ω twisted pair.
  • Supports current Category 6 applications such as 100BaseTX,100BaseVG, ATM, Gigabit Ethernet and all fast Ethernet protocols.

How to distinguish a Cat 6 plug from a Cat-5 or Cat-5E plug:

To distinguish a Cat-6 plug from a Cat-5 or a Cat-5E plug, just simply look at the way the cable's wires have been terminated at the end of the plug:

  • A Cat-5 or a Cat-5E plug will ALWAYS have all eight wires in a single row
  • The majority of Cat-6 plugs will have wires in two rows with four wires per row
  • Some Cat-6 plugs will have wires in two rows with 6 wires in the top row and 2 wires in the bottom row
Model # LC6621B
Brand PRO2
Shipping Weight 2.0000kg
Shipping Width 0.210m
Shipping Height 0.210m
Shipping Length 0.150m
Shipping Cubic 0.006615000m3
Type Ethernet Patch (RJ-45)
