200M IP OVER COAX EXTENDER PASSIVE PAIR BANDWIDTH 10Mbps

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

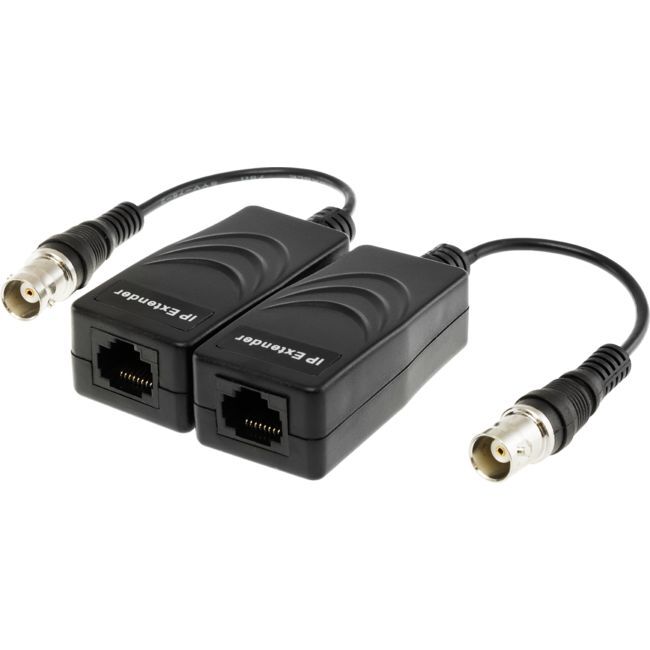

IPOC200 is a kind of Ethernet signal extender over coax cable, which adopts specific technology for media conversion, complies with IEEE802.3, 10BASE-T and 100BASE-T Protocol Standards. The device can transmit Ethernet signal200 meters over coax cable without extra power provided. Built-in TVS for surge protection help IPOC200 can protect interior equipment when encounter badly thunderstorms from. As for the application area, IPOC200 can be widely used for network monitoring project, upgrading from coaxial analogue monitoring system to network HD monitoring system, and all the field of transmitting Ethernet signal over coax cable.

Features:
1-CH IP extender over coax cable
Transmit Ethernet signal over coax cable
Transmission distance max up to 2 00m
Access Control Method and Physical Layer Specification Comply with IEEE802.3,10BASE-T and 100BASE-T
A passive device, no power required
Real-time transmission
Built-in TVS for surge protection
Compact size, easy to install
ABS engineering housing

Please note: this ipoc200 does not support Poe pass through.

(IPOC200)

Standard Consumer Warranty
IPOC200 is a kind of Ethernet signal extender over coax cable, which adopts specific technology for media conversion, complies with IEEE802.3, 10BASE-T and 100BASE-T Protocol Standards. The device can transmit Ethernet signal200 meters over coax cable without extra power provided. Built-in TVS for surge protection help IPOC200 can protect interior equipment when encounter badly thunderstorms from. As for the application area, IPOC200 can be widely used for network monitoring project, upgrading from coaxial analogue monitoring system to network HD monitoring system, and all the field of transmitting Ethernet signal over coax cable. Features: 1-CH IP extender over coax cable Transmit Ethernet signal over coax cable Transmission distance max up to 2 00m Access Control Method and Physical Layer Specification Comply with IEEE802.3,10BASE-T and 100BASE-T A passive device, no power required Real-time transmission Built-in TVS for surge protection Compact size, easy to install ABS engineering housing Please note: this ipoc200 does not support Poe pass through.
Model # IPOC200
Barcode # 9328202016577
Brand DOSS
Shipping Weight 0.0800kg
Shipping Width 0.120m
Shipping Height 0.020m
Shipping Length 0.080m
Shipping Cubic 0.000192000m3
Type Extender
