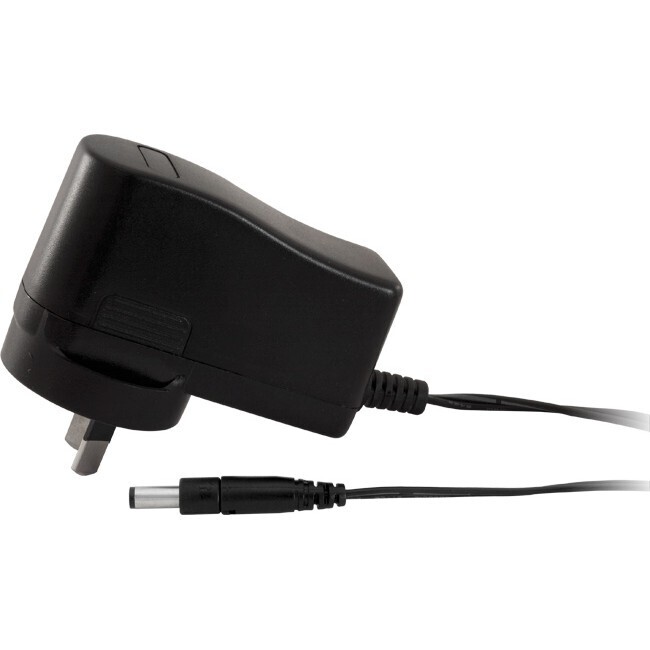

15V 300MA DC POWER SUPPLY SWITCHMODE 2.1MM CEN +TVE

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

15V 300MA DC POWER SUPPLY SWITCHMODE 2.1MM CEN +TVE
Input

  • 1.1 Rated input voltage:100-240V AC

  • 1.2 Vibration input voltage range:90-264V AC

  • 1.3 Rated input frequency:60/50Hz

  • 1.4 Vibration Rate input frequency:63/47Hz

  • 1.5 AC input Rated current:0.2A Max .@100V AC

  • 1.6 AC input Max power(No load):0.3W Max .@230V AC

  • 1.7 Inrush Current:30A Max .@100VAC cool start

  • 60A Max .@230VAC cool start

  • 1.8 Leakage current:0.25mA

MaxOutput characteristics

  • 2.1 Rating output voltage:15V

  • 2.2 Rating output current:0.3A

  • 2.3 Min. load current0A

  • 2.4 Output noload voltage:15V±5%

  • 2.5 Output load voltage:15V±5%

  • 2.6 Output ripple & noise:200mV

(SM1503)

Standard Consumer Warranty
15V 300MA DC POWER SUPPLY SWITCHMODE 2.1MM CEN +TVE Input 1.1 Rated input voltage:100-240V AC 1.2 Vibration input voltage range:90-264V AC 1.3 Rated input frequency:60/50Hz 1.4 Vibration Rate input frequency:63/47Hz 1.5 AC input Rated current:0.2A Max .@100V AC 1.6 AC input Max power(No load):0.3W Max .@230V AC 1.7 Inrush Current:30A Max .@100VAC cool start 60A Max .@230VAC cool start 1.8 Leakage current:0.25mA MaxOutput characteristics 2.1 Rating output voltage:15V 2.2 Rating output current:0.3A 2.3 Min. load current0A 2.4 Output noload voltage:15V±5% 2.5 Output load voltage:15V±5% 2.6 Output ripple & noise:200mV
Model # SM1503
Barcode # 9328202011725
Brand DOSS
Shipping Weight 0.0800kg
Shipping Width 0.200m
Shipping Height 0.070m
Shipping Length 0.150m
Shipping Cubic 0.002100000m3
Type Power Supply
